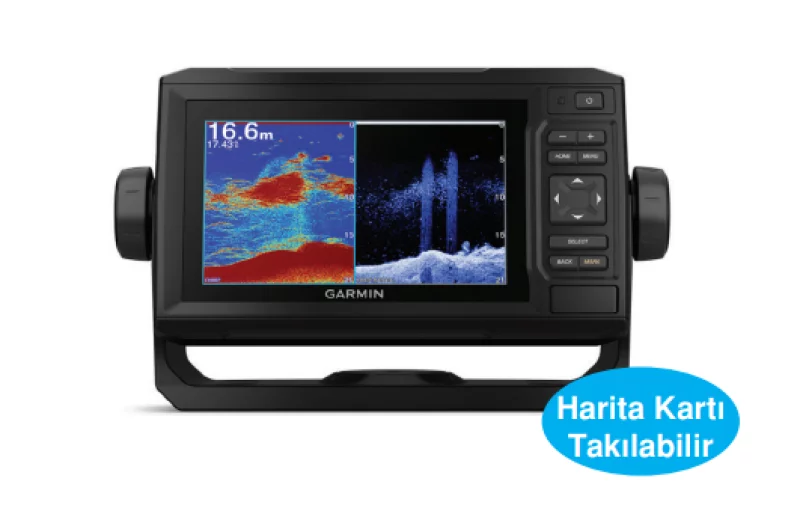

Garmin Echomap UHD 62 CV Fish Finder / Chartplotter

Garmin Echomap UHD 62 CV is a fish finder/chartplotter device that offers a WVGA display, built-in CHIRP sonar, and ClearVü support in a compact body, with NMEA 2000 compatibility.

Key Features

• WVGA display and 480 x 800 pixel resolution
• Built-in CHIRP sonar technology and ClearVü (integrated with CHIRP)
• Compatible with dual-frequency (50/200 kHz) and dual-beam (77/200 kHz) transducers
• Maximum transducer depth: 2,300 ft @ 77 kHz (freshwater) / 1,100 ft @ 77 kHz (saltwater)
• IPX7 waterproof rating
• NMEA 2000 compatibility and wireless connectivity support
• Worldwide basemap and tide tables
• microSD card support (up to 32 GB), 5,000 waypoints, 50,000 points / 50 track logs, and 100-route capacity
• AIS, DSC, ActiveCaptain, and sailing feature support

Technical Specifications

Feature	Value
Physical dimensions	8.6" x 5.1" x 2.6" (21.8 x 13.0 x 6.2 cm)
Display size	5.4" x 3.1"; 6.2" diagonal (13.7 x 7.7 cm; 15.2 cm diagonal)
Display resolution	480 x 800 pixels
Display type	WVGA display
Weight	1.6 lbs (0.7 kg)
Waterproof rating	IPX7
Mounting options	Bail or flush
Power consumption	12W
Maximum transducer depth	2,300 ft @ 77 kHz, freshwater | 1,100 ft @ 77 kHz, saltwater
Sensors
Receiver	5 Hz
Water temperature log and graph
NMEA 2000 compatible
Outdoor Activities
Preloaded maps	Worldwide basemap
Tide tables
Electrical Features
Transmit power	500 W (RMS) / 4,000 W (peak-to-peak)
Connections
Antenna	Internal or external over NMEA 2000
Garmin Marine Network ports	No
Transducer pin count	4
NMEA 0183 input ports	1
NMEA 0183 output ports	1
Video input ports	No
Video output ports	No
Wireless connectivity
Maps and Memory
Compatible memory cards	microSD card; 32 GB maximum size
Waypoints	5000
Track log	50,000 points; 50 track logs
Routes	100
Sonar Features and Specifications
Garmin sonar compatibility
Dual-frequency (50/200 kHz) transducer
Dual-beam (77/200 kHz) transducer
CHIRP sonar technology	Yes (built-in)
ClearVü	Yes, with CHIRP (integrated)
SideVü	No
Bottom lock (shows return from bottom upward)
Sonar recording
Sonar history rewind
Chartplotter Features
AIS support (tracks target vessel position)
DSC support (displays position data from DSC-enabled VHF radio)
ActiveCaptain compatibility
Sailing features
