The Maxwell RC12-10 series vertical windlass with capstan is designed with a 1200W motor power operating on a 24V supply and compatibility with 12 mm stud link chain. It features a capstan structure that can be used with 16-20 mm rope sizes.
| Model | RC12-10 |
|---|---|
| Type | Vertical windlass / capstan |
| Power source (voltage) | 12V or 24V |
| Motor power | 1200W |
| Maximum pulling force | 1590 kg |
| Static holding force | 2200 kg |
| Stud link chain | 12 mm |
| Rope sizes | 16–20 mm |
| Chain retrieval speed | 15 m/min |
| Rope retrieval speed | 13 m/min |
| Net weight – DC (capstan) | 32 kg |
| Net weight – DC | 29 kg |
| Hydraulic pressure | 138 bar |
| Hydraulic flow | 42 L/min |
| Net weight – hydraulic | 23 kg |
| Net weight – hydraulic, with gypsy | 26 kg |
Stock Code
:
3856895300

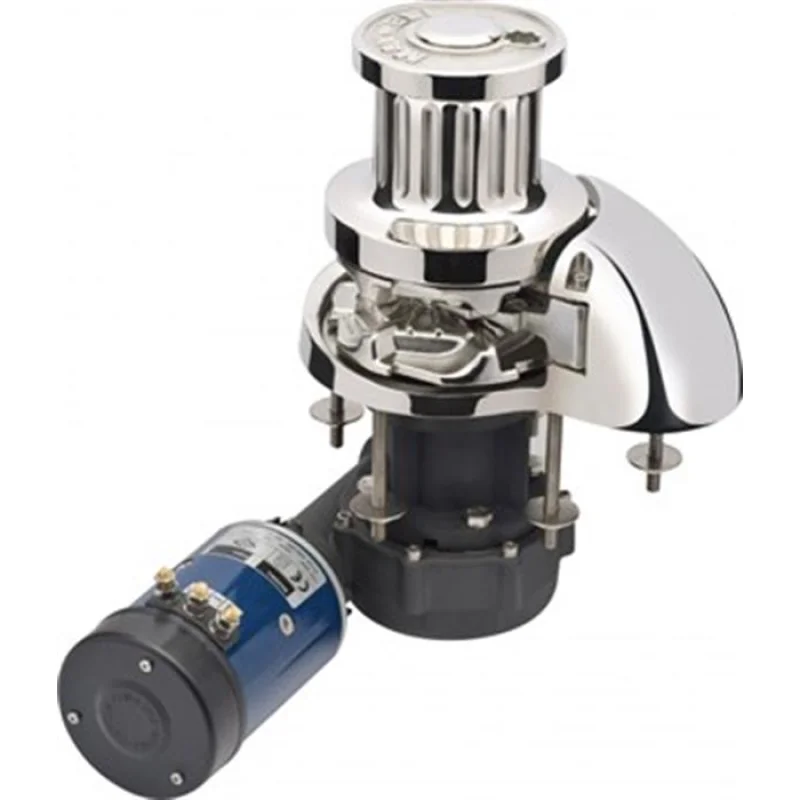

MAXWELL Maxwell RC12-10 1200W 24V 12mm Drum Vertical Windlass
No reviews yet
Ready to order
Maxwell RC12-10 vertical type, capstan windlass; designed with a 24V, 1200W motor power and compatibility for 12 mm stud link chain.
Price
In stock
₺350.140,15
Bank Transfer / EFT
%6 bank transfer / eft discount
₺329.131,74
Installment payment is only available for Turkish Lira.
Free Shipping
