The MAXWELL RC12-10 Series is a 1200W hydraulic vertical windlass designed for mooring and anchoring operations on boats and yachts. It operates on a 12V or 24V DC power supply and is compatible with 10mm stud link chain and 16-20mm rope sizes.
Technical Specifications:
| Maximum Pulling Power | 1134 kg |
| Static Holding Power | 2200 kg |
| Motor Power | 1200W |
| Operating Voltage | 12V or 24V |
| Chain Retrieval Speed | 24 m/min |
| Rope Retrieval Speed | 20 m/min |
| Hydraulic Pressure | 138 bar |
| Net Weight (with Drum) | 32 kg |
RC12 series windlasses are manufactured from polished AISI 316 stainless steel. They feature bi-directional operation and include the Wave Design™ gypsy. They are available in two types: with capstan and low profile. They come as standard equipment with an electric motor and bi-directional solenoid; switch and circuit breakers must be supplied separately.
Stock Code
:
3769879130

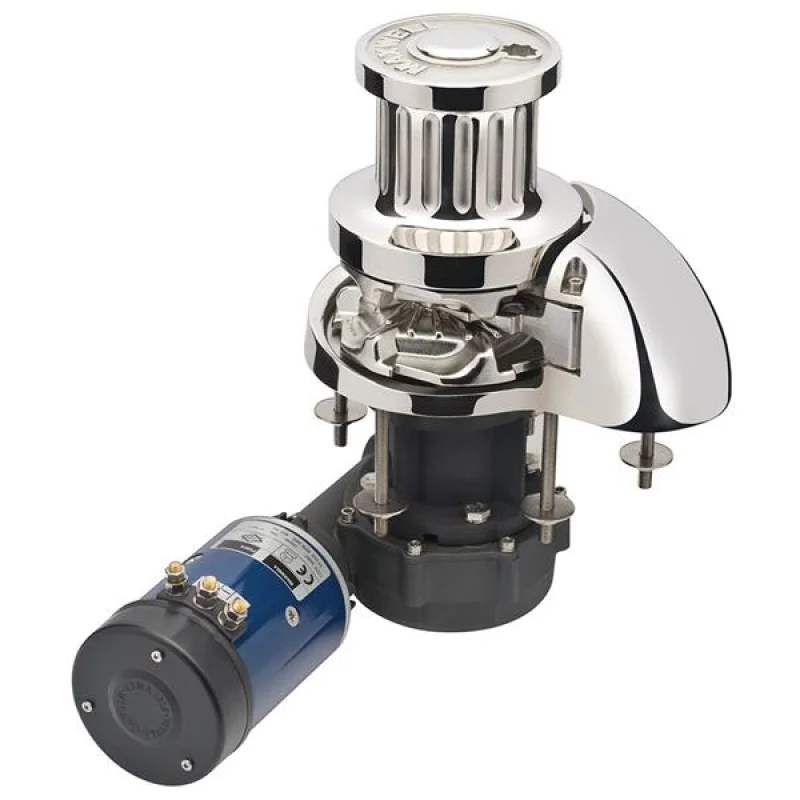

MAXWELL Maxwell RC12-10 Series 1200W 12/24V 10mm Drum Hydraulic Vertical Windlass
The MAXWELL RC12-10 Series is a hydraulic vertical windlass with a 1200W motor power, operating on 12/24V, featuring a 10mm gypsy. It is suitable for automatic rope and chain use.
Price
₺387.882,14
Bank Transfer / EFT
%6 bank transfer / eft discount
₺364.609,21
Installment payment is only available for Turkish Lira.
Free Shipping
