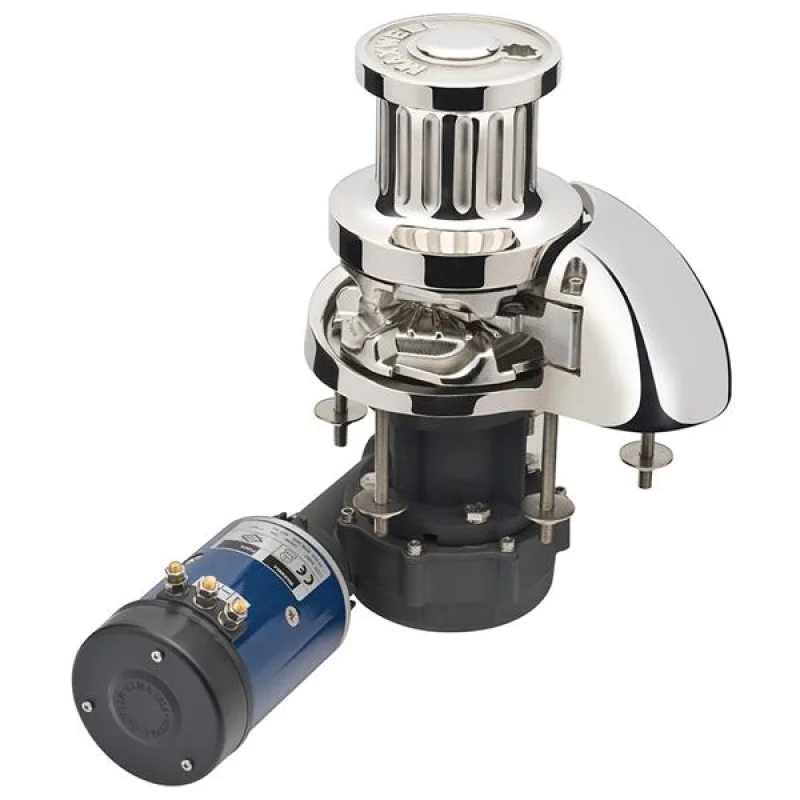

MAXWELL Maxwell RC12-10 Series 1200W 12/24V 12 mm Drum Hydraulic Vertical Windlass
MAXWELL
RC12
• Vertical windlass
• RC12 series are manufactured from polished AISI 316 stainless steel.
• Automatic rope and chain windlass.
• Wave Design™ gypsy.
• It is bidirectional.
• Available in two types: with drum and low profile.
• Windlass, electric motor and bidirectional solenoid are standard. Switch and circuit breakers must be ordered separately.
• Electric motor is 1200W.
RC12-10 mm RC12-12 mm
Maximum Pulling Power / Maximum Pull-Lift : 1134 kg 1590 kg
Static Holding Power / Static Hold : 2200 kg 2200 kg
Chain Link Size / Chain Sort Link : 10 mm 12 mm
Rope Sizes / Rope Size : 16-20 mm 16-20 mm
Chain Retrieval Speed / Chain Speed : 24 m/min 15 m/min
Rope Retrieval Speed / Rope Speed : 20 m/min 13 m/min
Power Supply (voltage) / Power Supply : 12V or 24V 12V or 24V
Motor Power / Motor Power : 1200W 1200W
Net weight (With drum) / (With drum) : 32 kg 32 kg
Net weight / Net Weight : 29 kg 29 kg
Hydraulic Pressure / Hydraulic Pressure : 138 bar 138 bar
Hydraulic Flow / Hydraulic Flow : 42 L/min 42 L/min
Net weight –Hydraulic / Net Weight - Hydraulic : 23 kg 23 kg
Net weight –Hydraulic - With drum / : 26 kg 26 kg
Net Weight - Hydraulic with drum
