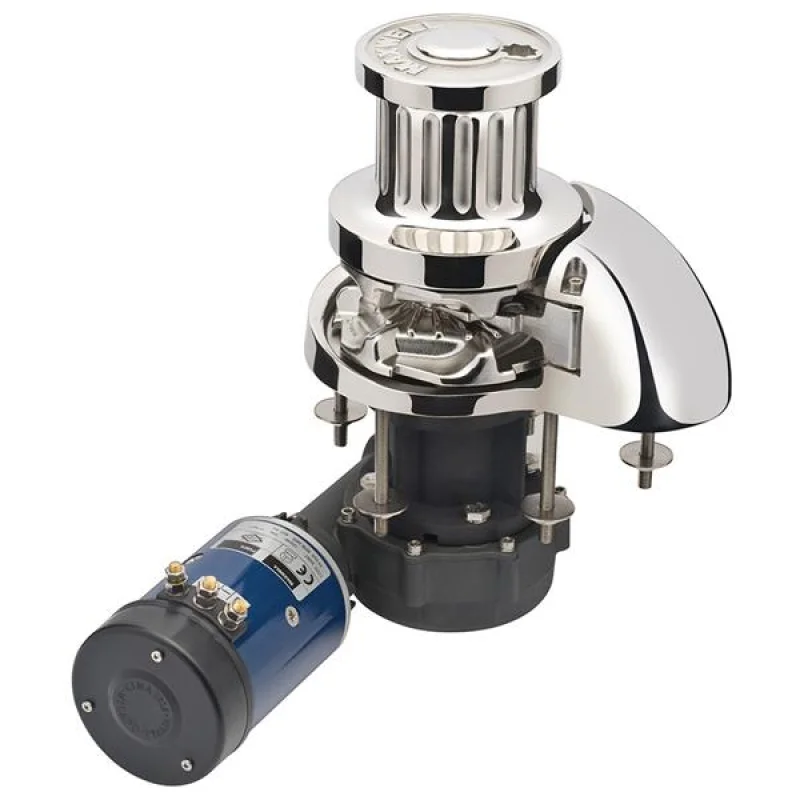

The MAXWELL RC12-10 Series is a vertical windlass operating on 12V DC with a motor power of 1200W. Designed for boats between 10 and 20 meters, this model is suitable for use with 10 mm stud link chain and 16-20 mm rope. It is equipped with automatic chain-rope windlass technology.

Technical Specifications:

• Model: RC12-10
• Type: Vertical Windlass / Gypsy
• Power Source: 12V DC
• Motor Power: 1200W
• Maximum Pulling Power: 1134 kg
• Static Holding Power: 2200 kg
• Stud Link Chain: 10 mm
• Rope Sizes: 16-20 mm
• Chain Retrieval Speed: 24 m/min
• Rope Retrieval Speed: 20 m/min
• Net Weight (Gypsy): 32 kg

The RC12 series is supplied as a set including the motor and solenoid. The control panel, two-way control system, and circuit breaker can be ordered separately. A foot switch, chain stopper, or Autoanchor products are optional.
