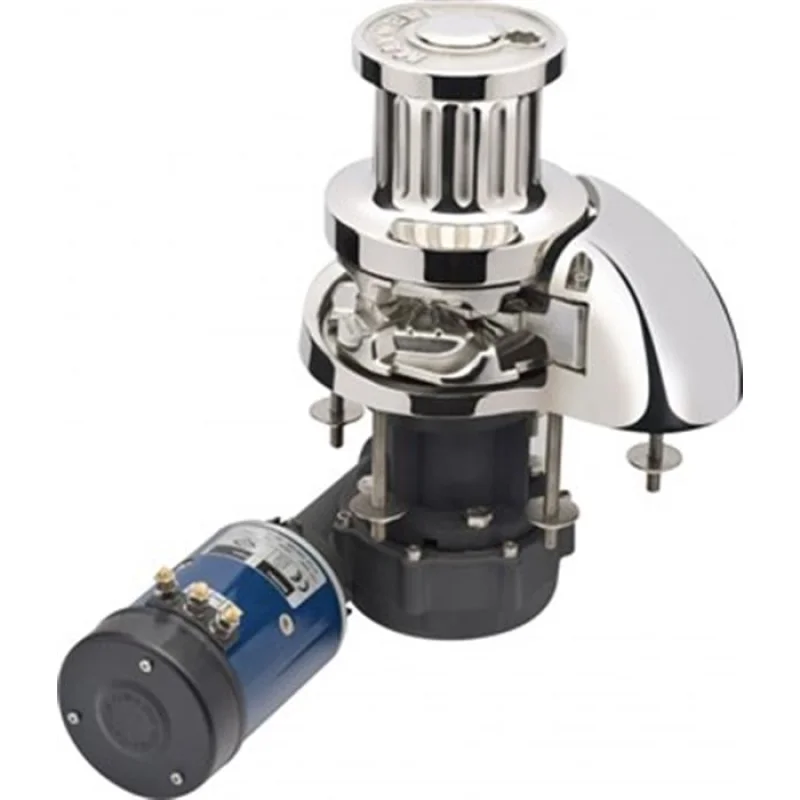

Maxwell RC12-12 Series is a hydraulic vertical windlass that operates with a 12/24V voltage option and has a motor power of 1200W. This drum model, suitable for use with 12mm stud link chain and 16-20mm rope, is designed for boats between 10 and 20 meters.
The product is supplied as a set including the motor and solenoid. The control panel, dual-direction control system, and circuit breaker can also be ordered separately. Optionally, a foot switch, chain stopper, or Autoanchor products can be provided.
| Maximum Pulling Power | 1590 kg |
| Static Holding Power | 2200 kg |
| Stud Link Chain | 12 mm |
| Rope Sizes | 16-20 mm |
| Chain Retrieval Speed | 15 m/min |
| Rope Retrieval Speed | 13 m/min |
| Power Source (Voltage) | 12V / 24V |
| Motor Power | 1200W |
| Hydraulic Pressure | 138 bar |
| Hydraulic Flow | 42 L/min |
| Net Weight (DC Drum) | 32 kg |
| Net Weight (Hydraulic) | 23 kg |
Stock Code
:
1392397376
MAXWELL Maxwell RC12-12 Series 1200W 12/24 V 12mm Drum Hydraulic Vertical Windlass Pulling Power : 1590 kg
The Maxwell RC12-12 Series is a 1200W, 12/24V hydraulic vertical windlass with a 12mm gypsy. It offers a pulling power of 1590 kg and is suitable for boats between 10 and 20 meters.
Price
₺387.882,14
Bank Transfer / EFT
%6 bank transfer / eft discount
₺364.609,21
Installment payment is only available for Turkish Lira.
Free Shipping
Technical Details
Features
Watt
Winch Type
Boat Length
