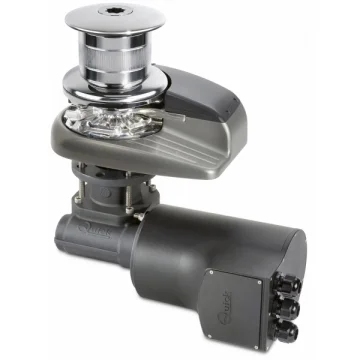

Quick ALEPH is a vertical windlass with a gypsy, a mooring and anchoring equipment featuring a 10 mm chainwheel structure, powered by a 1000W motor and 12V supply. It is manufactured from AISI 316 stainless steel, anodized aluminum, chrome plating, and composite materials.

• Type: Vertical windlass, gypsy model
• Body material: AISI 316 stainless steel, anodized aluminum, chrome plating, and composite
• Motor power: 1000W
• Voltage: 12V
• Chainwheel: 10 mm
• Suitable boat length: 10–13 m
• IP rating: IP67 waterproof motor
• Working load: 120 kg
• Maximum working load: 370 kg
• Maximum pull: 1000 kg
• Operating current: 140A
• Winding speed (no load): 39.6 m/min.
• Winding speed (under working load): 20.4 m/min.
• Weight with gypsy: 18.2 kg
• Weight without gypsy: 17.5 kg

• Options for use with or without gypsy
• Capability to pull 14/16 mm rope with chain gypsy
• Manual free-fall system
• Manual retrieval system for emergencies
• Chain stripper bar
• Anodized aluminum gearbox
• 8 mm chainwheel: Compatible with 8 mm DIN766, 8 mm ISO, 5/16" G4, 5/16" BBB chains
• 10 mm chainwheel: Compatible with 10 mm ISO, 3/8" G4 chains
• Sensor for optional chain counter connection is standard mounted on the windlass
• Solenoid and remote control are standard equipment
• CE certified
