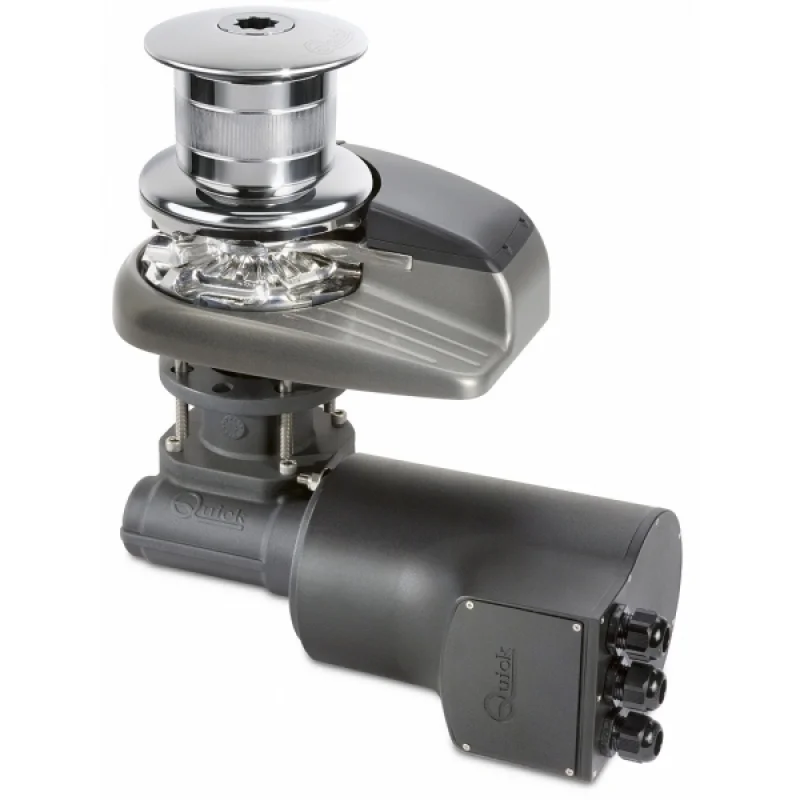

The Quick ALEPH is a vertical windlass with a gypsy. Designed for boats 12–15 meters in length, it features a 1500W motor, 24V power supply, and an 8 mm gypsy. It is manufactured from AISI 316 stainless steel, anodized aluminum, chrome plating, and composite materials.

• Vertical windlass, gypsy model
• Material: AISI 316 stainless steel, anodized aluminum, chrome plating, and composite
• Motor power: 1500W
• Voltage: 24V
• Gypsy: 8 mm
• Suitable boat length: 12–15 m
• Weight without gypsy: 22.2 kg
• Weight with gypsy: 23.4 kg
• IP67 rated waterproof motor
• Anodized aluminum body and gearbox
• Can be used with or without gypsy
• Capable of pulling 14/16 mm rope with the chain gypsy
• Manual free-fall system
• Manual retrieval system for emergencies
• Chain stripper bar
• 8 mm gypsy: Compatible with 8 mm DIN766, 8 mm ISO, 5/16" G4, 5/16" BBB chains
• 10 mm gypsy: Compatible with 10 mm ISO, 3/8" G4 chains
• Maximum pull: 1100 kg
• Maximum working load: 540 kg
• Working load: 180 kg
• Amperage at working load: 85 A
• Retrieval speed: 29.7 m/min.
• Retrieval speed (at working load): 19 m/min.
• A sensor for an optional chain counter connection is pre-installed on the windlass as standard.
• Solenoid and remote control are standard equipment.
• CE certified.
