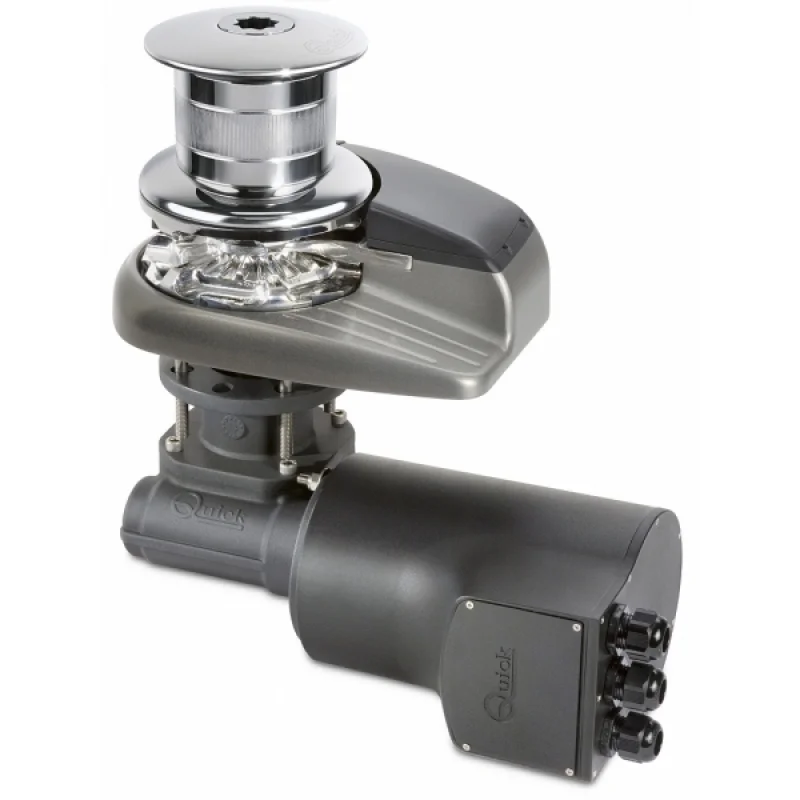

The Quick ALEPH vertical capstan windlass is a mooring and anchoring equipment with a 1500W motor power, operating on a 12V supply, and featuring an 8 mm chain gypsy. It is designed for boats 12-15 meters in length.
Its body is made of anodized aluminum with a hard oxide finish. AISI 316 stainless steel, aluminum, chrome plating, and composite materials are used. It is equipped with an IP67-rated waterproof motor, an anodized aluminum gearbox, and a chain stripper. The solenoid and winch handle are among the standard equipment.
It features a manual Free-Fall system and an emergency manual retrieval system. Both capstan and non-capstan versions are available. The necessary sensor for the optional chain counter connection is standardly mounted on the windlass. It is CE certified.
- Product type: Vertical, capstan windlass
- Brand / Series: Quick ALEPH
- Motor power: 1500W
- Voltage: 12V
- Chain gypsy: 8 mm
- Suitable boat length: 12-15 m
- Body material: Anodized aluminum, hard oxide
- Material composition: AISI 316 stainless steel, aluminum, chrome plating, and composite
- Protection class: IP67 waterproof motor
- Chain compatibility (8 mm gypsy): 8 mm DIN766, 8 mm ISO, 5/16" G4, 5/16" BBB chains
- Chain compatibility (10 mm gypsy): 10 mm ISO, 3/8" G4 chains
- Rope pulling: Capability to pull 14/16 mm rope with the chain gypsy
- Maximum pull: 1100 kg
- Maximum working load: 470 kg
- Working load: 160 kg
- Amperage at working load: 155 A
- Winding speed (no load): 29.2 m/min.
- Winding speed (at working load): 16.3 m/min.
- Weight without capstan: 22.2 kg
- Weight with capstan: 23.4 kg
- Standard equipment: Solenoid, winch handle, chain counter sensor (connection optional)
- Approval: CE
