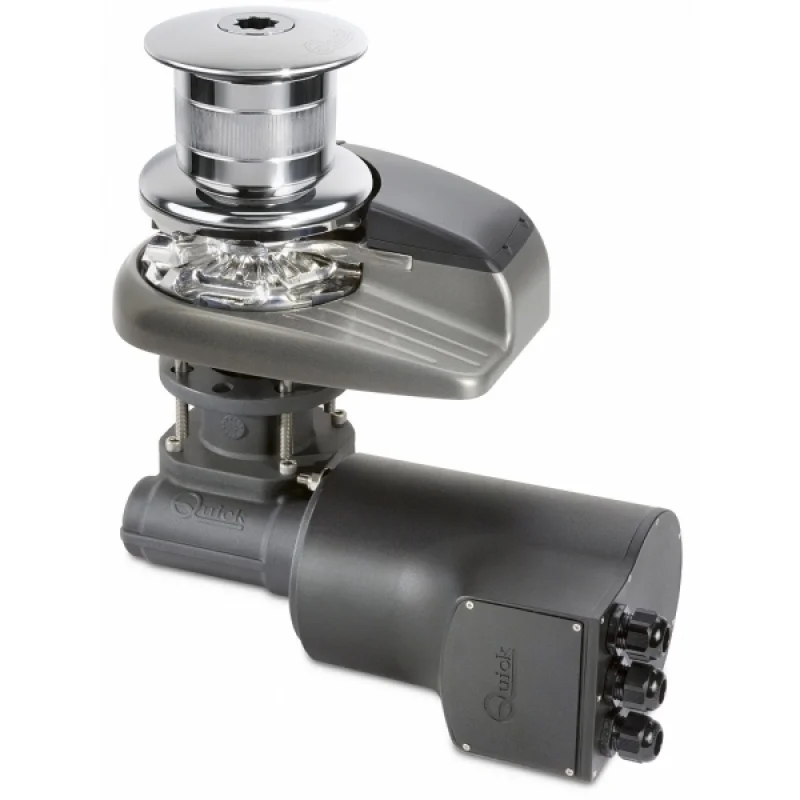

The Quick ALEPH vertical windlass with gypsy is a model operating at 1500W power and 24V supply, with a 10 mm chain gypsy. It is specified for 12-15 meter boat lengths and has options for versions with and without a rope drum.
Its body construction uses AISI 316 stainless steel, aluminum, chrome plating, and composite materials. With an IP67 rated waterproof motor, anodized aluminum hard oxide body, and anodized aluminum gearbox, it offers a vertical windlass solution. Solenoid and winch handle are among the standard equipment.
The necessary sensor for the optional chain counter connection is mounted as standard on the windlass. It is possible to pull 14/16 mm rope with the chain gypsy. Manual free-fall system, emergency manual retrieval system, and chain stripper hardware are available.
- Product type: Vertical windlass with gypsy
- Brand / Model: Quick ALEPH
- Motor power: 1500W
- Voltage: 24V
- Gypsy: 10 mm
- Suitable boat length: 12-15 m
- IP rating: IP67 waterproof motor
- Body: Anodized aluminum, hard oxide
- Gearbox: Anodized aluminum
- Materials: AISI 316 stainless steel, aluminum, chrome plating, and composite
- Working load: 180 kg
- Maximum working load: 540 kg
- Maximum pull: 1100 kg
- Current at working load: 85 A
- Retrieval speed (no load): 29.7 m/min
- Retrieval speed (at working load): 19 m/min
- Weight without drum: 22.2 kg
- Weight with drum: 23.4 kg
- Chain compatibility (8 mm gypsy): 8 mm DIN766, 8 mm ISO, 5/16" G4, 5/16" BBB chains
- Chain compatibility (10 mm gypsy): 10 mm ISO, 3/8" G4 chains
- Rope compatibility: 14/16 mm rope
- Standard equipment: Solenoid, winch handle, chain counter sensor (connection optional)
- Systems: Manual free-fall, emergency manual retrieval, chain stripper
- Certification: CE approved
