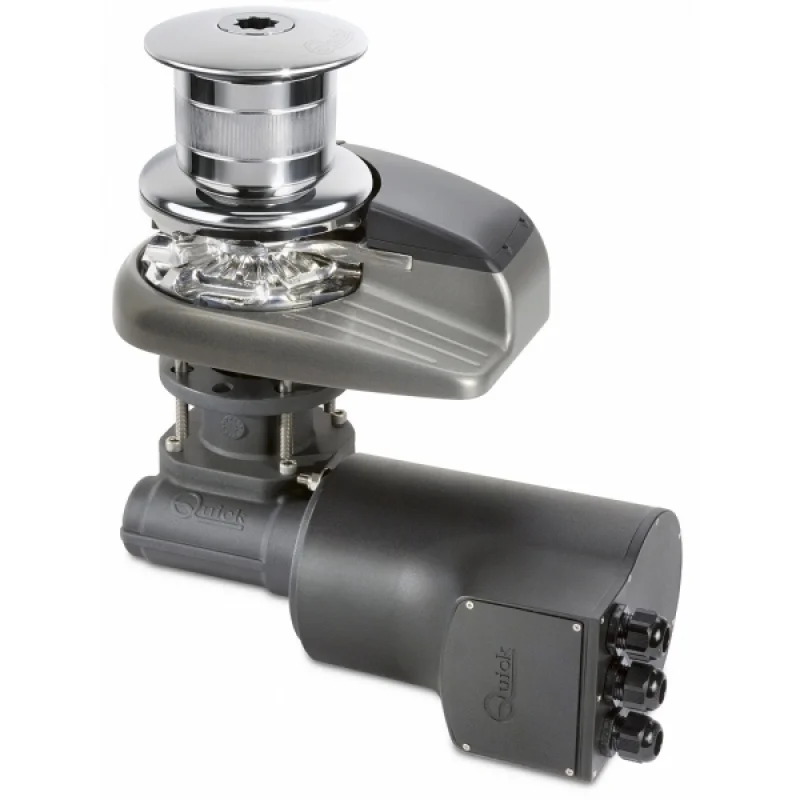

The Quick ALEPH vertical windlass with gypsy is a mooring and anchoring equipment that uses an 8 mm chain link, with a 700W motor power and 24V supply. It has a body structure made from AISI 316 stainless steel, aluminum, chrome plating, and composite materials.

• Product type: Vertical windlass, gypsy model
• Motor power: 700W
• Voltage: 24V
• Chain link: 8 mm
• Suitable boat length: 7–10 m
• Body material: AISI 316 stainless steel, anodized aluminum, chrome plating, and composite
• Body coating: Anodized aluminum, hard anodized body
• Structure: Series with optional gypsy and without gypsy, capable of pulling 14/16 mm rope with chain gypsy
• Systems: Manual free-fall system, emergency manual retrieval system, chain stripper bar
• Protection class: IP67 waterproof motor
• Gearbox: Anodized aluminum gearbox
• Chain compatibility (8 mm link): 8 mm DIN766, 8 mm ISO, 5/16" G4, 5/16" BBB chains
• Chain compatibility (10 mm link info): 10 mm ISO, 3/8" G4 chains
• Maximum pull: 680 kg
• Maximum working load: 320 kg
• Working load: 107 kg
• Current at working load: 50 A
• Winding speed (no load): 25.3 m/min.
• Winding speed (at working load): 11.4 m/min.
• Weight (without gypsy): 16.2 kg
• Weight (with gypsy): 17.4 kg

The solenoid and winch handle are included as standard equipment in this model. The necessary sensor for the optional chain counter connection is pre-installed on the windlass as standard. The product is CE certified.
