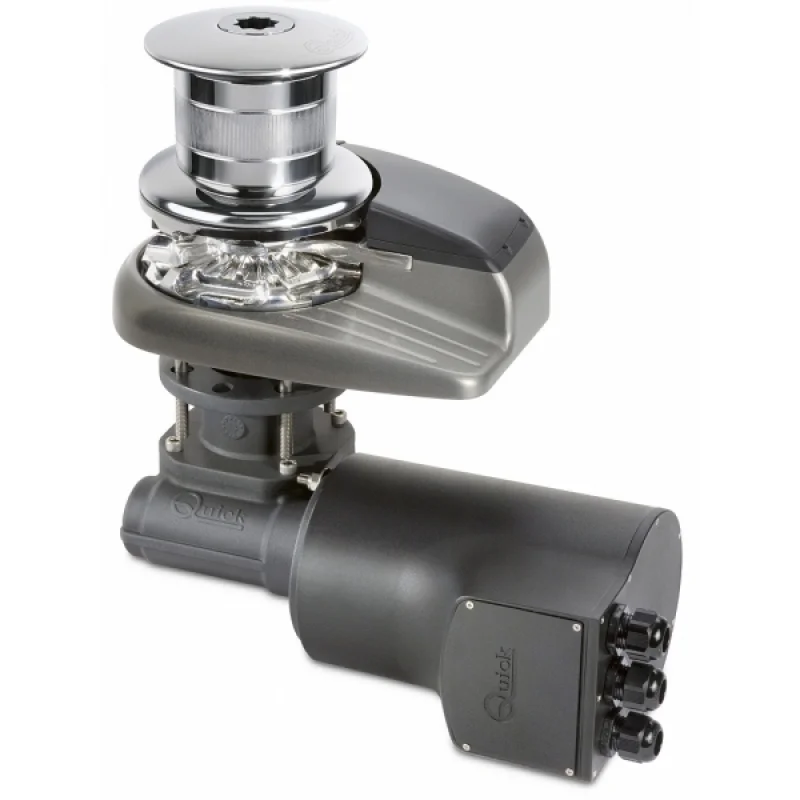

Quick ALEPH is a vertical capstan windlass model designed for 8 mm chain gypsy systems, with a 700W motor power and 12V supply. It features a body structure that combines anodized aluminum, AISI 316 stainless steel, chrome plating, and composite materials.

Its IP67 class waterproof motor, the ability to pull 14/16 mm rope with the chain gypsy, and its capstan design offer technical specifications suitable for use in mooring and anchoring systems. Solenoid and winch handle are among the standard equipment.

• Product type: Vertical capstan windlass
• Model: Quick ALEPH
• Motor power: 700W
• Voltage: 12V
• Gypsy: 8 mm
• Body: Anodized aluminum, hard anodized body
• Material: AISI 316 stainless steel, aluminum, chrome plating, and composite
• Motor protection class: IP67 waterproof motor
• Working load: 100 kg
• Maximum working load: 300 kg
• Maximum pull: 680 kg
• Winding speed (no load): 22.6 m/min.
• Winding speed (under working load): 11.6 m/min.
• Weight with capstan: 17.4 kg
• Weight without capstan: 16.2 kg
• Suitable boat length: 7–10 m

• Options for versions with and without capstan
• Ability to pull 14/16 mm rope with the chain gypsy
• Manual free-fall system
• Manual retrieval system for emergencies
• Chain stripper bar
• Anodized aluminum gearbox
• 8 mm gypsy: Compatible with 8 mm DIN766, 8 mm ISO, 5/16" G4, 5/16" BBB chains
• 10 mm gypsy: Compatible with 10 mm ISO, 3/8" G4 chains
• A sensor for optional chain counter connection is standardly mounted on the windlass
• CE approved structure
