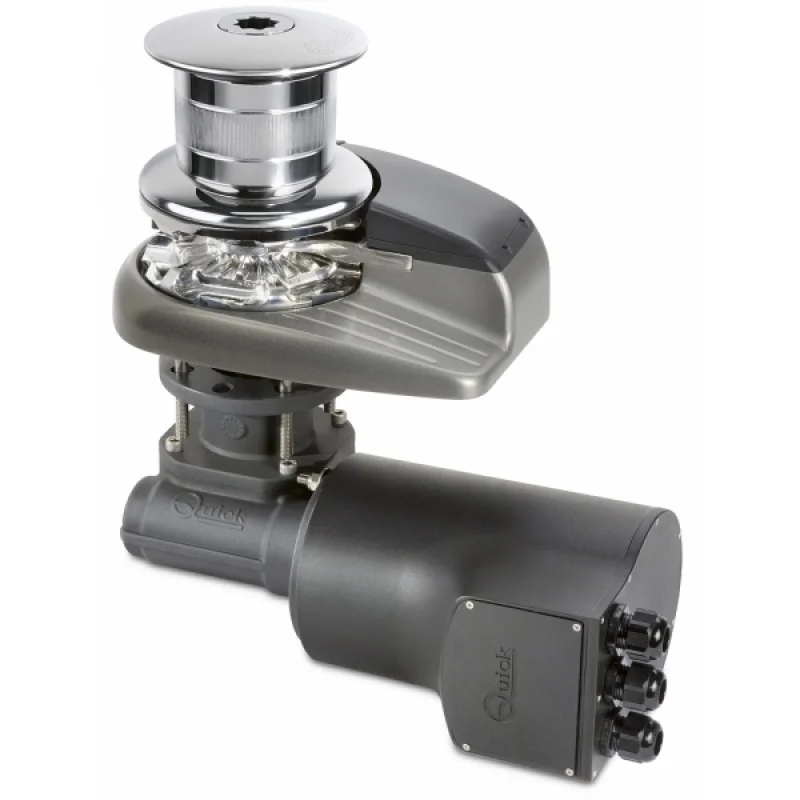

The Quick ALEPH vertical windlass with gypsy is an anchor windlass designed for 10-13 meter boats, featuring a 1000W motor, 12V power supply, and an 8 mm chain gypsy. Its body is made of anodized aluminum, hard anodized, and comes with an IP67-rated waterproof motor.

• Type: Vertical windlass, gypsy model
• Motor power: 1000W
• Voltage: 12V
• Gypsy: 8 mm
• Suitable boat length: 10-13 m
• Body: Anodized aluminum, hard anodized
• Gearbox: Anodized aluminum
• Motor protection class: IP67 waterproof
• Materials: AISI 316 stainless steel, aluminum, chrome-plated brass, and composite
• Working load: 120 kg
• Maximum working load: 370 kg
• Maximum pull: 1000 kg
• Retrieval speed (no load): 39.6 m/min.
• Retrieval speed (under working load): 20.4 m/min.
• Weight without gypsy: 17.5 kg
• Weight with gypsy: 18.2 kg
• Chain compatibility (8 mm gypsy): 8 mm DIN766, 8 mm ISO, 5/16" G4, 5/16" BBB chains
• Chain compatibility (10 mm gypsy option): 10 mm ISO, 3/8" G4 chains

The product is equipped with a chain gypsy for handling 14/16 mm rope, a manual free-fall system, an emergency manual retrieval system, and a chain stripper. The necessary sensor for an optional chain counter connection is standardly mounted on the windlass. The solenoid and remote control are among the standard equipment. It is CE certified.
