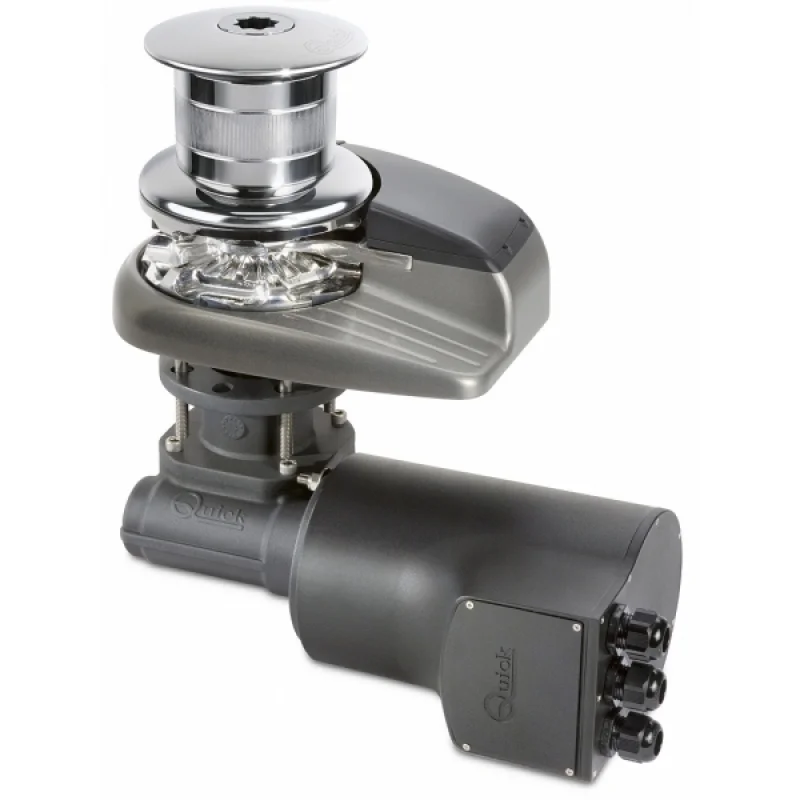

The Quick ALEPH vertical windlass with gypsy is an anchor windlass featuring an 8 mm chain gypsy structure, powered by a 1000W motor and 24V voltage. Its body, manufactured from AISI 316 stainless steel, aluminum, chrome plating, and composite materials, is produced to be compatible with marine conditions. It is suitable for boats with lengths of 10–13 meters.

• Type: Vertical windlass, gypsy model
• Body material: AISI 316 stainless steel, anodized aluminum, chrome plating, and composite
• Motor power: 1000W
• Voltage: 24V
• Gypsy: 8 mm
• Suitable boat length: 10–13 m
• Maximum pull: 1000 kg
• Maximum working load: 450 kg
• Working load: 150 kg
• Current at working load: 80 A
• Winding speed (no load): 40.9 m/min.
• Winding speed (at working load): 21.4 m/min.
• Weight (with gypsy): 18.2 kg
• Weight (without gypsy): 17.5 kg

• Option for use with or without gypsy
• Capability to pull 14/16 mm rope with the chain gypsy
• Manual free-fall system
• Manual retrieval system for emergencies
• Chain stripper bar
• IP67 rated waterproof motor
• Anodized aluminum gearbox
• 8 mm gypsy: Compatible with 8 mm DIN766, 8 mm ISO, 5/16" G4, 5/16" BBB chains
• 10 mm gypsy: Compatible with 10 mm ISO, 3/8" G4 chains
• Sensor for optional chain counter connection is standardly mounted on the windlass
• Solenoid and remote control are standard equipment
• CE certified
