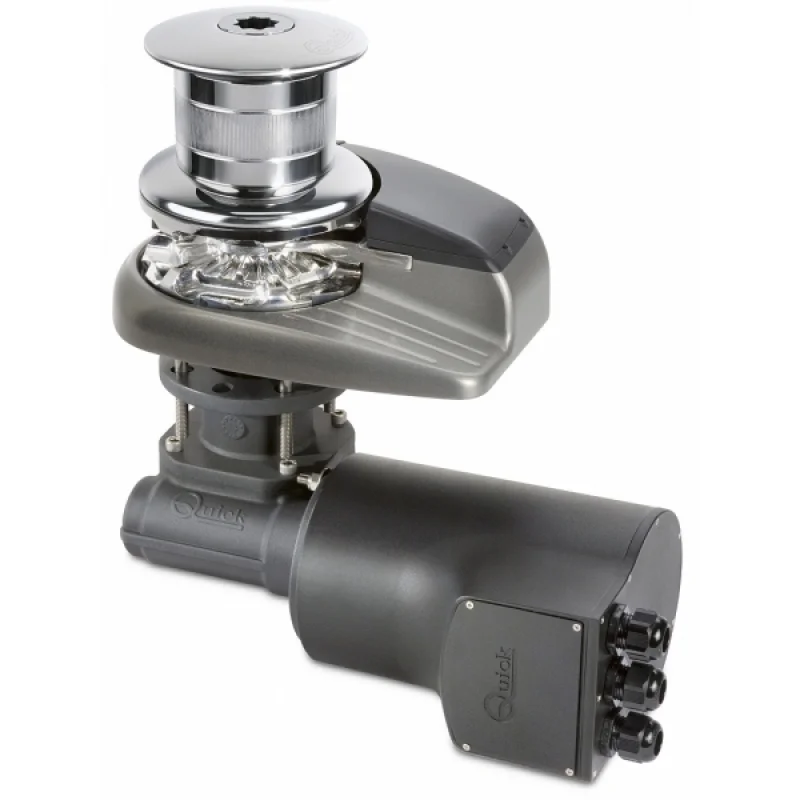

The Quick ALEPH vertical windlass with gypsy is a model operating with 1000W power and 24V supply, featuring a 10 mm chain gypsy. It is manufactured from AISI 316 stainless steel, aluminum, chrome plating, and composite materials and holds CE approval.

• Type: Vertical windlass, gypsy model
• Body material: AISI 316 stainless steel, anodized aluminum, chrome plating, and composite
• Motor power: 1000W
• Voltage: 24V
• Chain gypsy: 10 mm
• Suitable boat length: 10–13 m
• IP class: IP67 waterproof motor
• Weight without gypsy: 17.5 kg
• Weight with gypsy: 18.2 kg

The windlass comes with the necessary sensor for an optional chain counter connection pre-installed as standard. The solenoid and remote control are included in the standard equipment. It features a manual free-fall system, an emergency manual retrieval system, and a chain stripper.

• Capability to pull 14/16 mm rope with the chain gypsy
• Anodized aluminum, hard anodized body
• Anodized aluminum gearbox
• 8 mm gypsy: Suitable for 8 mm DIN766, 8 mm ISO, 5/16" G4, 5/16" BBB chains
• 10 mm gypsy: Suitable for 10 mm ISO, 3/8" G4 chains
• Maximum pull: 1000 kg
• Maximum working load: 450 kg
• Working load: 150 kg
• Winding speed (no load): 40.9 m/min.
• Winding speed (at working load): 21.4 m/min.
