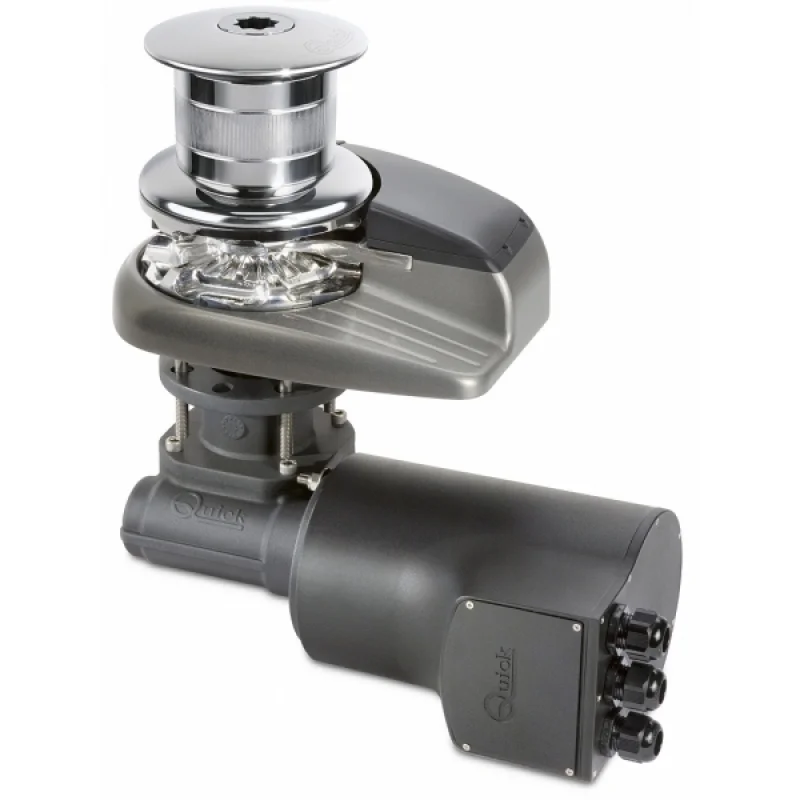

The Quick ALEPH vertical windlass with gypsy is a model designed for 10 mm link chain systems, featuring a 1500W motor power and 12V voltage. This windlass, intended for boats in the 12-15 meter length range, combines chain and rope use with its gypsy design.
Its body construction utilizes anodized aluminum, hard anodized surface, AISI 316 stainless steel, chrome plating, and composite materials. With an IP67 rated waterproof motor and an anodized aluminum gearbox, it is built to suit the marine environment. Solenoid and winch handle are among the standard equipment.
- Type: Vertical windlass, gypsy model
- Motor power: 1500W
- Voltage: 12V
- Link: 10 mm
- Suitable boat length: 12-15 m
- Material: AISI 316 stainless steel, anodized aluminum, chrome plating, and composite
- Motor protection: IP67 waterproof motor
- Gearbox: Anodized aluminum
- Maximum pull: 1100 kg
- Maximum working load: 470 kg
- Working load: 160 kg
- Working current: 155 A
- Winding speed (no load): 29.2 m/min
- Winding speed (at working load): 16.3 m/min
- Weight without gypsy: 22.2 kg
- Weight with gypsy: 23.4 kg
For chain and rope use, 8 mm and 10 mm link options are supported:
- 8 mm link: For 8 mm DIN766, 8 mm ISO, 5/16" G4, 5/16" BBB chains
- 10 mm link: For 10 mm ISO, 3/8" G4 chains
The model features a manual free-fall system, an emergency manual retrieval system, and a chain stripper bar. The necessary sensor for an optional chain counter connection is mounted as standard on the windlass.
