Out of stock

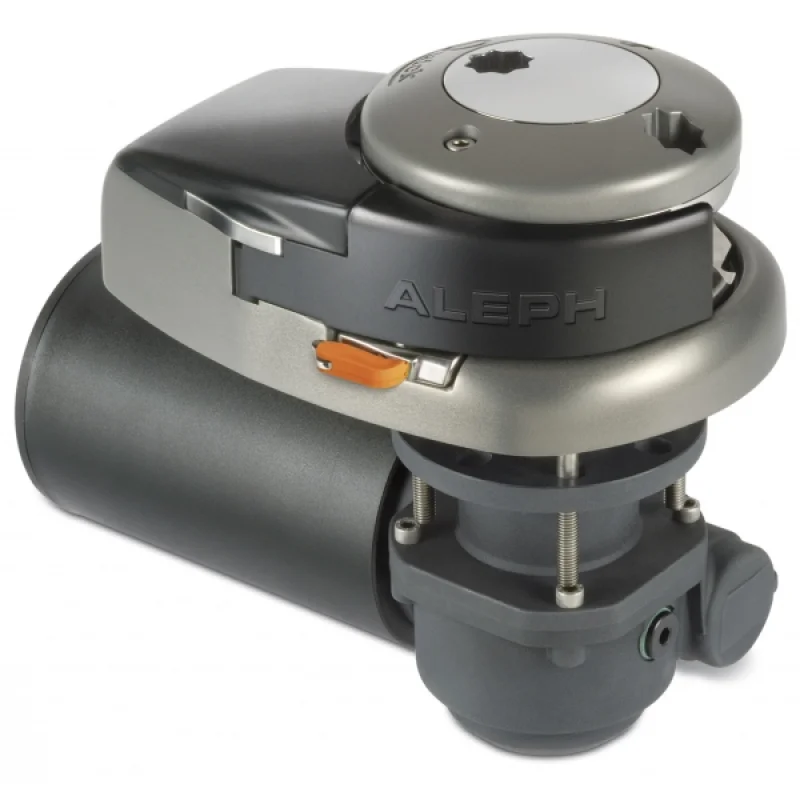

Quick ALEPH is a vertical windlass without a gypsy, designed for use on boats 7-10 meters in length, with a 700W motor power and 24V supply. It serves as anchoring equipment in chain and rope systems compatible with its 8 mm gypsy structure.

Product type	Vertical windlass, model without gypsy
Brand / Model	Quick ALEPH
Motor power	700W
Voltage	24V
Gypsy	8 mm
Suitable boat length	7-10 m
Maximum pull	680 kg
Maximum working load	320 kg
Working load	107 kg
Operating current	50A
Winding speed (no load)	25.3 m/min.
Winding speed (at working load)	11.4 m/min.
Weight without gypsy	16.2 kg
Weight with gypsy	17.4 kg

Manufactured from AISI 316 stainless steel, aluminum, chrome plating, and composite materials.
Features an anodized aluminum, hard anodized body and an anodized aluminum gearbox.
Available in versions with and without a gypsy; this model is without a gypsy.
Offers the capability to pull 14/16 mm rope with the chain gypsy.
Equipped with a manual free-fall system and an emergency manual retrieval system.
Comes with a chain stripper bar.
Has an IP67 rated waterproof motor construction.
8 mm gypsy is compatible with 8 mm DIN766, 8 mm ISO, 5/16" G4, and 5/16" BBB chains.
10 mm gypsy is compatible with 10 mm DIN766, 10 mm ISO, and 3/8" G4 chains.
The sensor required for an optional chain counter connection is pre-installed as standard on the windlass.
Solenoid and remote control are included as standard equipment.
CE certified.
