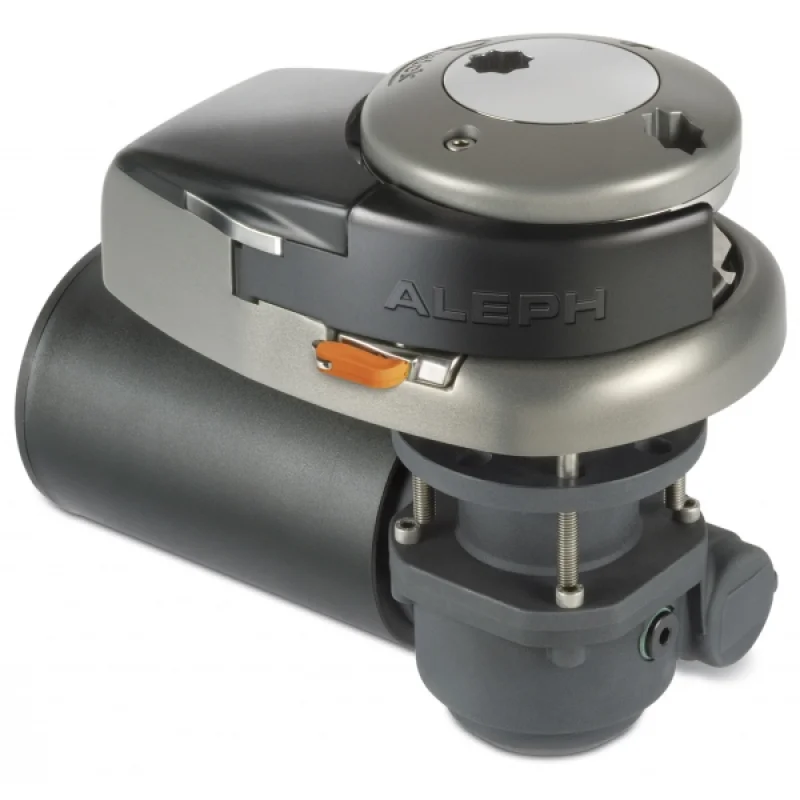

Quick ALEPH is a vertical, gypsy-only windlass. With a 1500W motor power and 12V operating voltage, it features a 10 mm gypsy and is suitable for boats 12–15 meters in length.

• Type: Vertical windlass, gypsy-only model
• Motor power: 1500W
• Voltage: 12V
• Gypsy: 10 mm
• Suitable boat length: 12–15 m
• Maximum pull: 1100 kg
• Maximum working load: 470 kg
• Working load: 160 kg
• Amperage at working load: 155A
• Retrieval speed (no load): 29.2 m/min
• Retrieval speed (at working load): 16.3 m/min
• Weight without gypsy: 22.2 kg
• Weight with gypsy (reference): 23.4 kg

The 8 mm gypsy is compatible with 8 mm DIN766, 8 mm ISO, 5/16" G4, and 5/16" BBB chains; the 10 mm gypsy is compatible with 10 mm DIN766, 10 mm ISO, and 3/8" G4 chains. With a manual free-fall system, emergency manual retrieval capability, chain stripper bar, and an IP67-rated waterproof motor housing, the ALEPH series windlass offers a reliable solution for marine applications.
