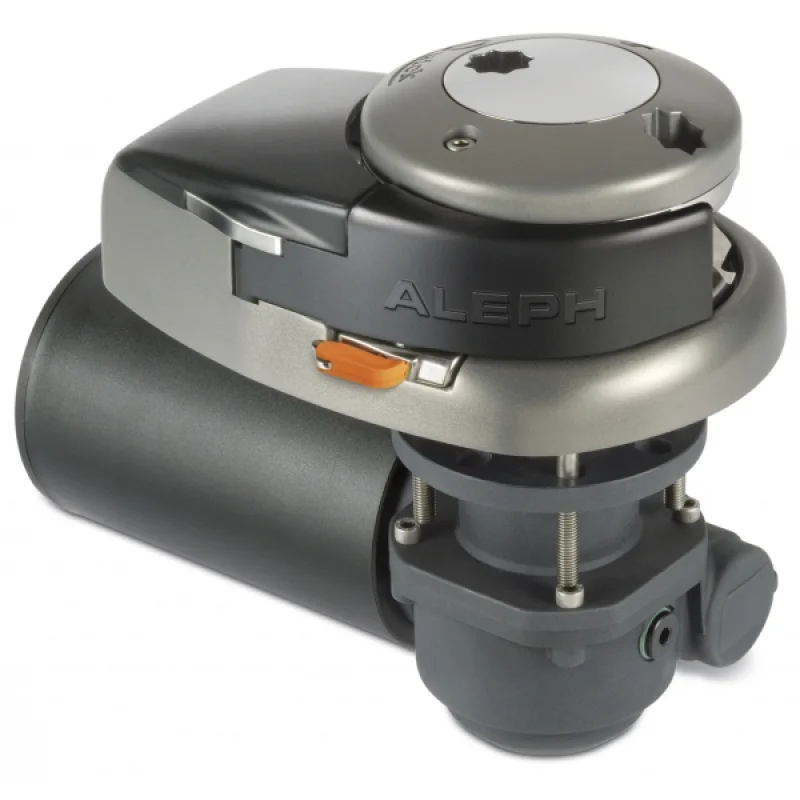

The Quick ALEPH vertical windlass, with its drumless model design, is an anchor windlass designed for 10-13 meter boats using 8 mm chain. It operates with a 1000W motor power and 24V supply.
| General Features | |
|---|---|
| Product type | Vertical, drumless windlass |
| Brand / Series | Quick ALEPH |
| Suitable boat length | 10–13 m |
| Chain type | 8 mm |
| Drum / drumless option | Drumless model |
| Technical Specifications | |
|---|---|
| Motor power | 1000 W |
| Voltage | 24 V |
| Maximum pull | 1000 kg |
| Maximum working load | 4500 kg |
| Working load | 150 kg |
| Current at working load | 80 A |
| Winding speed (no load) | 40.9 m/min. |
| Winding speed (at working load) | 21.4 m/min. |
| Weight without drum | 17.5 kg |
| Weight with drum | 18.7 kg |
The body and gearbox are manufactured from anodized aluminum. It features the ability to pull 14/16 mm rope with the chain gypsy, manual free-fall and emergency manual retrieval system, chain stripper bar, and an IP67 rated waterproof motor construction. The 8 mm gypsy is suitable for 8 mm DIN766, 8 mm ISO, 5/16" G4, and 5/16" BBB chains, while the 10 mm gypsy is suitable for 10 mm DIN766, 10 mm ISO, and 3/8" G4 chains.
The necessary sensor for the optional chain counter connection is mounted as standard on the windlass. The solenoid and remote control are among the standard equipment. The ALEPH series is manufactured from AISI 316 stainless steel, aluminum, chrome plating, and composite materials and has CE approval.
