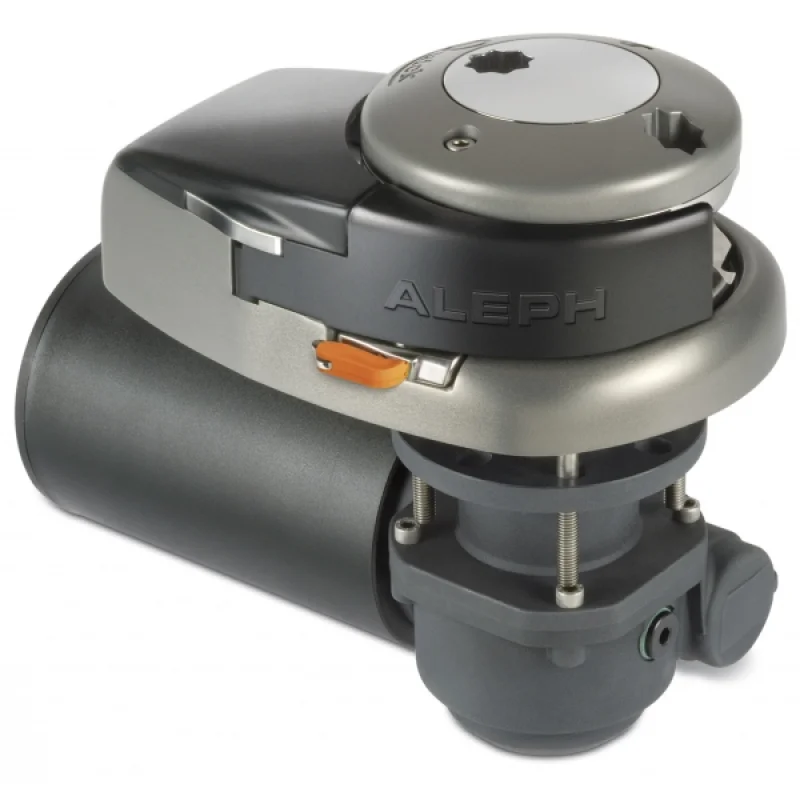

Quick ALEPH vertical windlass is a capstan windlass designed for 10–13 meter boats with its drumless model structure. It is manufactured using a combination of AISI 316 stainless steel, anodized aluminum, chrome plating, and composite materials.

This windlass, with a motor power of 1000W, operates at 24V and provides chain and rope pulling with a 10 mm gypsy. It features an IP67 rated waterproof motor and an anodized aluminum gearbox, placing it among vertical mounted windlass solutions.

• Product type: Vertical windlass, drumless model
• Material: AISI 316 stainless steel, anodized aluminum body, chrome plated and composite parts
• Motor power: 1000W
• Voltage: 24V
• Maximum pull: 1000 kg
• Maximum working load: 4500 kg
• Working load: 150 kg
• Amperage at working load: 80A
• Winding speed (no load): 40.9 m/min.
• Winding speed (at working load): 21.4 m/min.
• Gypsy: 10 mm
• Suitable boat length: 10–13 m
• Weight without drum: 17.5 kg
• Weight with drum: 18.7 kg
• Chain compatibility (8 mm gypsy): 8 mm DIN766, 8 mm ISO, 5/16" G4, 5/16" BBB chains
• Chain compatibility (10 mm gypsy): 10 mm DIN766, 10 mm ISO, 3/8" G4 chains
• Rope pulling: Capability to pull 14/16 mm rope with the chain gypsy
• Systems: Manual free-fall system, emergency manual retrieval system, chain stripper bar
• Electrical equipment: Solenoid and remote control are standard equipment
• Protection class: IP67 waterproof motor
• Approval: CE approved
• Other: Sensor for optional chain counter connection is pre-installed as standard on the windlass
