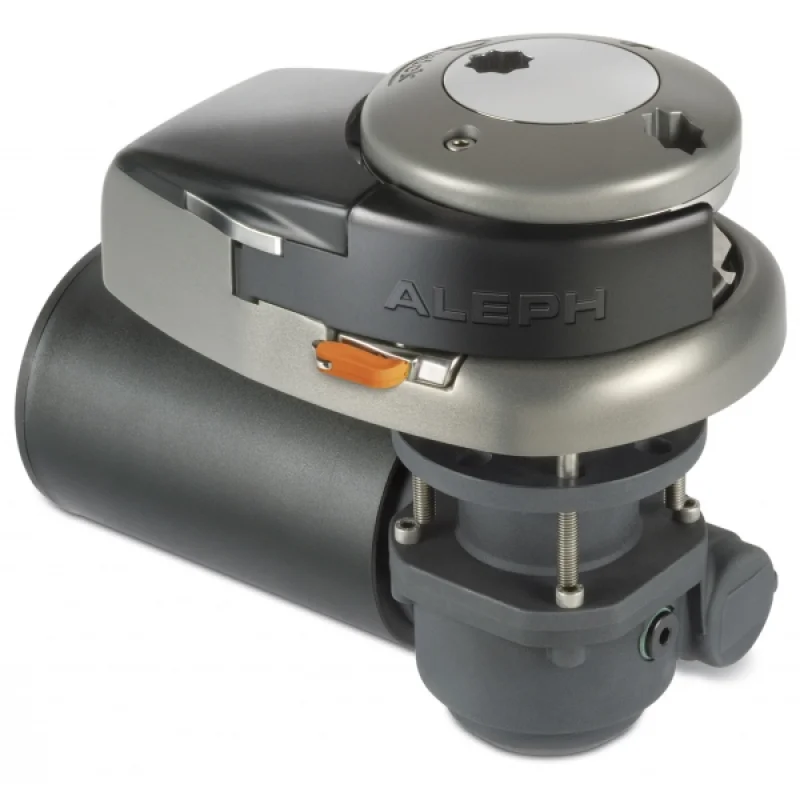

Quick ALEPH is a vertical, gypsy-less windlass. It is designed with a 1000W motor power, 12V supply, and an 8 mm chain gypsy.

• Type: Vertical windlass, gypsy-less model
• Motor power: 1000W
• Voltage: 12V
• Gypsy: 8 mm
• Suitable chains (8 mm gypsy): 8 mm DIN766, 8 mm ISO, 5/16" G4, 5/16" BBB
• Maximum pull: 1000 kg
• Maximum working load: 370 kg
• Working load: 120 kg
• Current at working load: 140 A
• Winding speed (no load): 39.6 m/min.
• Winding speed (at working load): 20.4 m/min.
• Weight without gypsy: 17.5 kg
• Weight with gypsy (reference): 18.7 kg
• Recommended boat length: 10–13 m

• Body manufactured from AISI 316 stainless steel, aluminum, chrome plating, and composite materials
• Anodized aluminum, hard anodized body
• Capability to pull 14/16 mm rope with the chain gypsy
• Manual free-fall system
• Manual retrieval system for emergencies
• Chain stripper bar
• IP67 rated waterproof motor
• Anodized aluminum gearbox
• Sensor for optional chain counter connection is standard mounted on the windlass
• Solenoid and remote control are standard equipment
• CE approved
