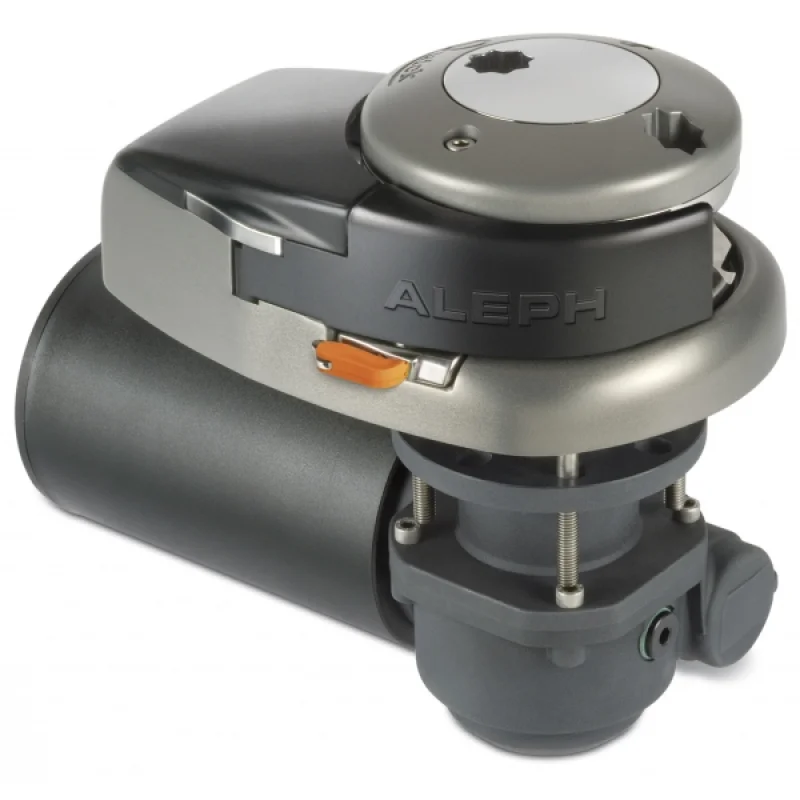

The Quick ALEPH is a vertical, gypsy-only windlass. This model operates on a 12V power supply with 1500W of power and is suitable for use with 8 mm stud link chain.

Its body is made of anodized aluminum with a hard oxide finish. It comes with an IP67-rated waterproof motor, an anodized aluminum gearbox, and a chain stripper. The solenoid and windlass handle are included as standard equipment.

It features a manual free-fall system and an emergency manual retrieval system. The sensor required for an optional chain counter connection is pre-installed as standard on the windlass.

• Type: Vertical windlass
• Model: Gypsy-only
• Motor power: 1500W
• Voltage: 12V
• Stud link: 8 mm
• Suitable boat length: 12–15 m
• Maximum pull: 1100 kg
• Maximum working load: 470 kg
• Working load: 160 kg
• Amperage at working load: 155A
• Retrieval speed (no load): 29.2 m/min
• Retrieval speed (at working load): 16.3 m/min
• Weight without gypsy: 22.2 kg
• Weight with gypsy: 23.4 kg
• Chain compatibility (8 mm stud link): 8 mm DIN766, 8 mm ISO, 5/16" G4, 5/16" BBB chains
