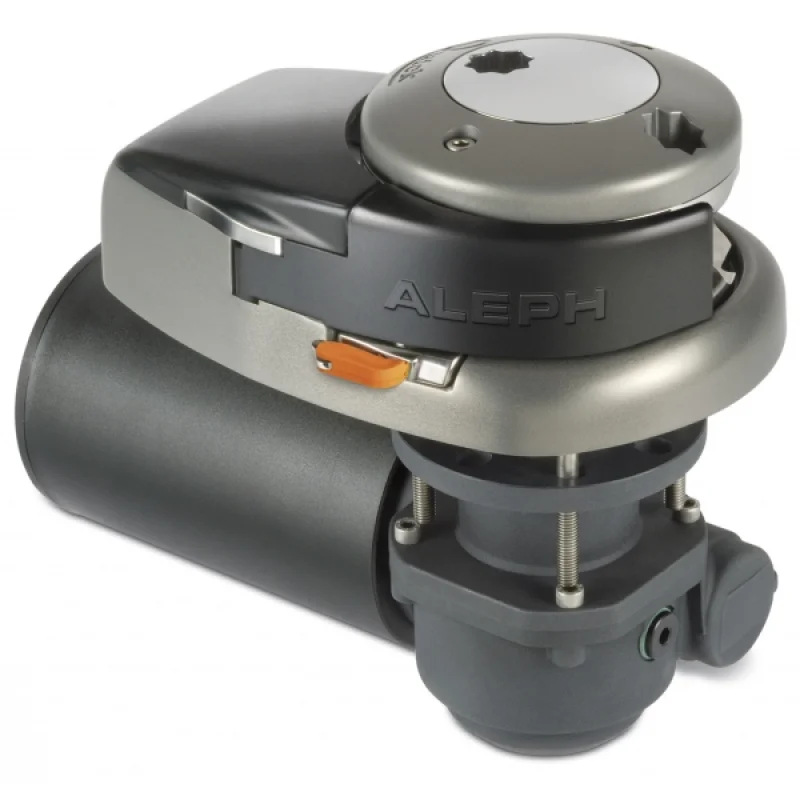

The Quick ALEPH vertical windlass, with its drumless model structure and 8 mm gypsy, is an anchor windlass designed for boats in the 7-10 meter length range. It operates with a 700W motor power and 12V supply.

• Product type: Vertical, drumless windlass
• Brand / Model: Quick ALEPH
• Motor power: 700W
• Voltage: 12V
• Gypsy: 8 mm
• Suitable boat length: 7-10 m
• Body: Anodized aluminum, hard anodized body
• Body materials: AISI 316 stainless steel, aluminum, chrome plating, and composite
• Structure: Capable of pulling 14/16 mm rope with chain gypsy, chain stripper bar
• Working load: 100 kg
• Maximum working load: 300 kg
• Maximum pull: 680 kg
• Retrieval speed (no load): 22.6 m/min
• Retrieval speed (under working load): 11.6 m/min
• Weight without drum: 16.2 kg
• Weight with drum: 17.4 kg
• Protection class: IP67 waterproof motor
• Gearbox: Anodized aluminum gearbox
• Free-fall: Manual Free-Fall system
• Emergency: Manual retrieval system
• Standard equipment: Solenoid and handle
• Chain counter sensor: Sensor for optional chain counter connection is standard mounted on the windlass
• Chain compatibility (8 mm gypsy): Suitable for 8 mm DIN766, 8 mm ISO, 5/16" G4, 5/16" BBB chains
• Chain compatibility (10 mm gypsy): Suitable for 10 mm DIN766, 10 mm ISO, 3/8" G4 chains
• Certification: CE approved
