Watt: 1500
Chain Gypsy: 8
Volt: 24

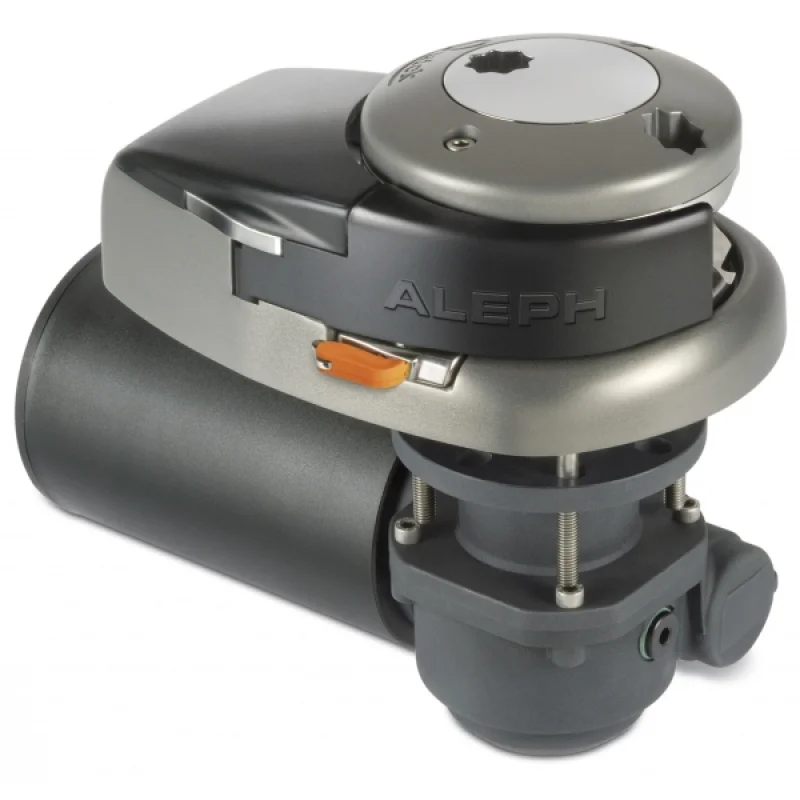

Quick ALEPH. Non-gypsy model.

ALEPH

Fully compatible with marine conditions, manufactured from AISI 316 stainless steel, aluminum, chrome plating, and composite materials. Designed with superior quality and excellent design to require no service for a long time. CE approved.

The sensor necessary for the optional chain counter connection is mounted as standard on the windlass.

Solenoid and remote control are standard equipment.

• Vertical windlass
• Anodized aluminum, hard anodized body
• With gypsy and without gypsy
• Capable of pulling 14/16 mm rope with chain gypsy
• Manual Free-Fall system
• Manual retrieval system in case of emergency
• Chain stripper bar
• IP67 Class waterproof motor
• Anodized aluminum gearbox
• 8mm gypsy suitable for 8mm DIN766, 8mm ISO, 5/16" G4, 5/16" BBB chains
• 10mm gypsy suitable for 10mm DIN766, 10mm ISO, 3/8" G4 chains
• Motor Power: 1500W
• Voltage: 24V
• Maximum Pull: 1100kg
• Maximum Working Load: 540kg
• Working Load: 180kg
• Amperage at Working Load: 5A
• Retrieval Speed: 29.7m/min.
• Retrieval Speed (at Working Load): 19.0m/min.
• Weight without Gypsy: 22.2 kg
• Weight with Gypsy: 23.4 kg
• Chain Gypsy: 8mm
• Suitable Boat Length: 12-15m
