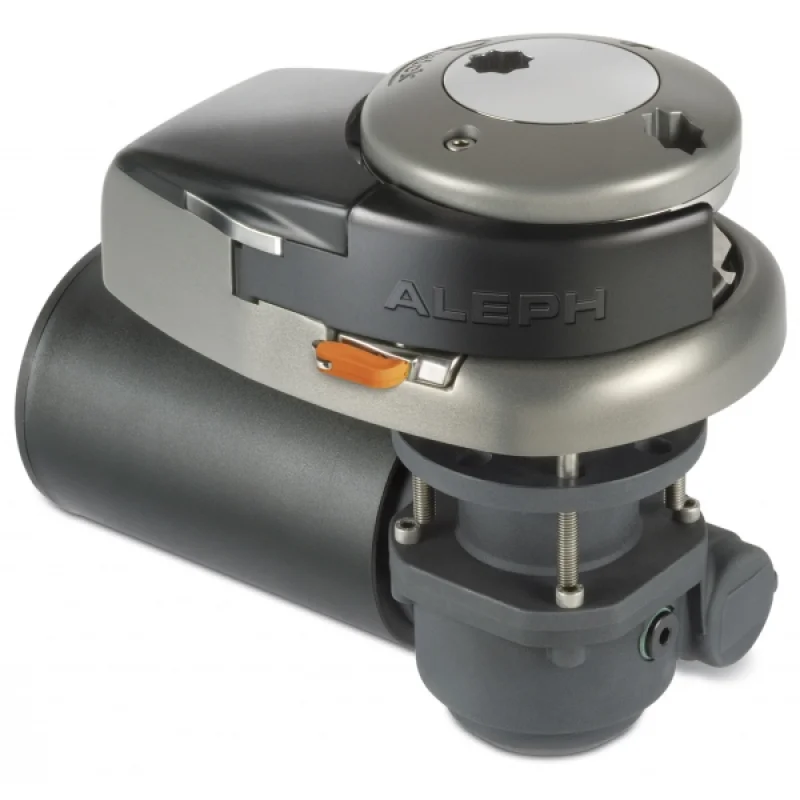

The Quick ALEPH vertical windlass is a drumless model with a 1500W motor power and 24V operating voltage, featuring a 10 mm gypsy. It is suitable for boats 12–15 meters in length.

• Type: Vertical windlass, available with or without a drum
• Body: Anodized aluminum, hard anodized body
• Gypsy: 10 mm
• Motor Power: 1500W
• Voltage: 24V
• Maximum Pull: 1100 kg
• Maximum Working Load: 540 kg
• Working Load: 180 kg
• Amperage at Working Load: 5A
• Retrieval Speed (No Load): 29.7 m/min
• Retrieval Speed (at Working Load): 19.0 m/min
• Weight without Drum: 22.2 kg
• Weight with Drum: 23.4 kg
• Suitable Boat Length: 12–15 m

• Manual Free-Fall system
• Manual retrieval system for emergencies
• Chain stripper bar
• IP67 rated waterproof motor
• Anodized aluminum gearbox
• 8 mm gypsy: Compatible with 8 mm DIN766, 8 mm ISO, 5/16" G4, 5/16" BBB chains
• 10 mm gypsy: Compatible with 10 mm DIN766, 10 mm ISO, 3/8" G4 chains
• Sensor on the windlass is standard for optional chain counter connection
• Solenoid and remote control are standard equipment
