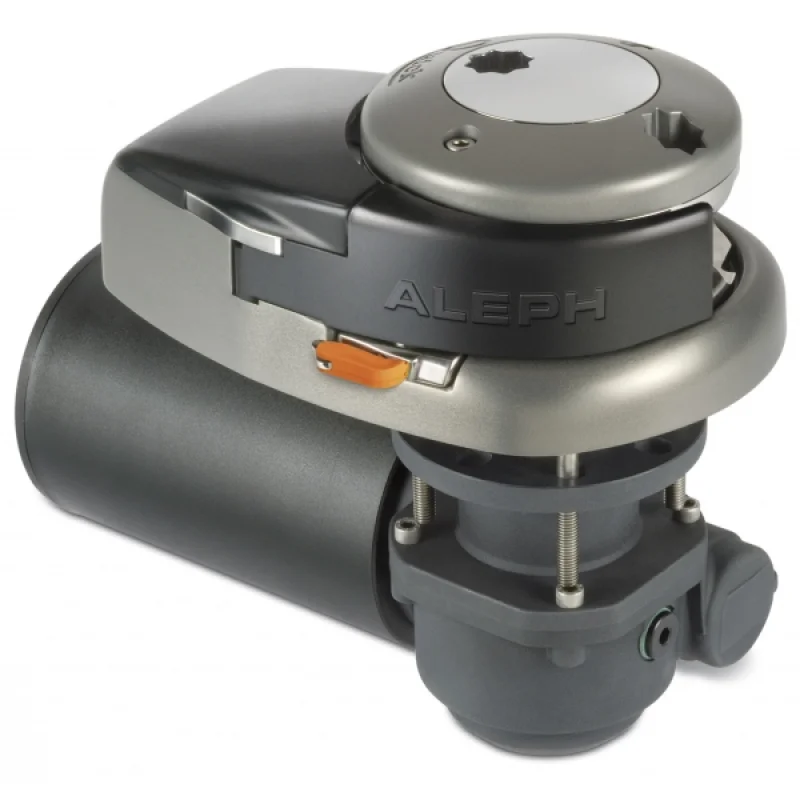

The Quick ALEPH vertical windlass is a drumless model anchor windlass with a 10 mm chain gypsy, operating at 1000W power and 12V supply.

• Type: Vertical windlass, drumless model
• Motor power: 1000W
• Voltage: 12V
• Chain gypsy: 10 mm
• Suitable boat length: 10–13 m
• Weight without drum: 17.5 kg
• Weight with drum (reference): 18.7 kg
• Maximum pull: 1000 kg
• Maximum working load: 370 kg
• Working load: 120 kg
• Amperage at working load: 140 A
• Retrieval speed (no load): 39.6 m/min.
• Retrieval speed (at working load): 20.4 m/min.

Its body is made of anodized aluminum with a hard oxide coating. It offers the capability to handle 14/16 mm rope with the chain gypsy. It is equipped with a manual free-fall system, an emergency manual retrieval system, a chain stripper bar, and an IP67-rated waterproof motor. It features an anodized aluminum gearbox.

• 8 mm gypsy: Suitable for 8 mm DIN766, 8 mm ISO, 5/16" G4, 5/16" BBB chains
• 10 mm gypsy: Suitable for 10 mm DIN766, 10 mm ISO, 3/8" G4 chains

The necessary sensor for an optional chain counter connection is standardly mounted on the windlass. The solenoid and windlass handle are included as standard equipment. It is CE certified.
