Motor Power: 3500W
Voltage: 24V
Gypsy: 14 mm
Maximum Pull: 4000kg
Maximum Working Load: 1500kg
Working Load: 700 kg
Amperage at Working Load: 225A
Winding Speed: 24 m/min.
Winding Speed (at Working Load): 14 m/min.
Suitable Boat Length: 22-29 m

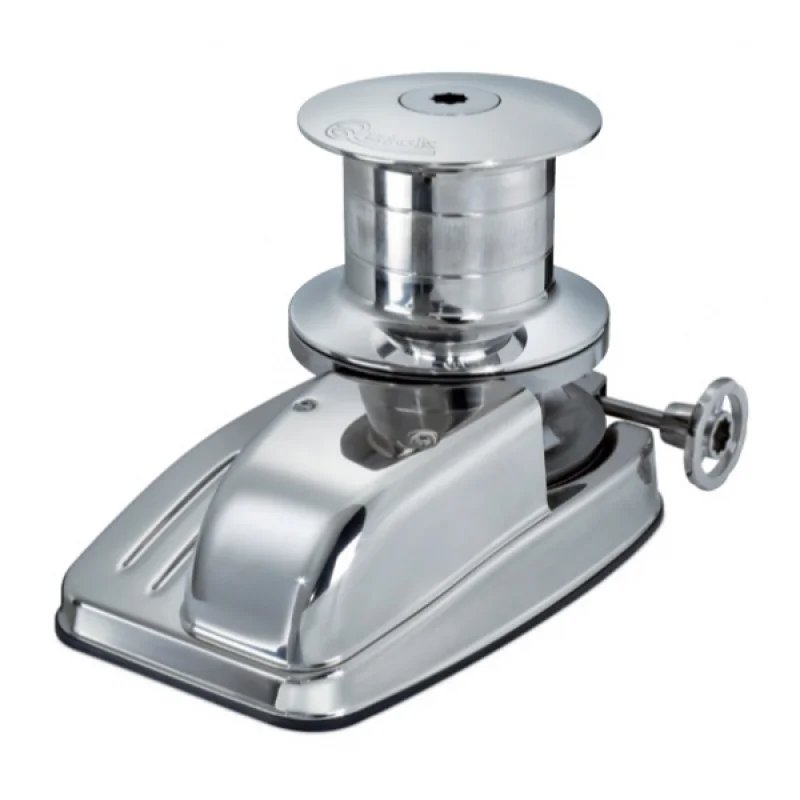

Quick DUKE. Drum model. Quick DUKE. Drum model.

It is manufactured from AISI 316 stainless steel, aluminum, chrome plating, and composite materials, fully compatible with marine conditions. Designed with superior quality and excellent design to require no service for a long time. CE approved.

The sensor necessary for the optional chain counter connection is mounted as standard on the windlass.

Solenoid and remote control are standard equipment.

• Vertical windlass
• AISI 316 stainless steel body, drum, and gypsy cover
• With or without drum
• Gearbox with anodized aluminum body
• 12/13mm gypsy suitable for 12mm ISO, 13mm DIN766, 7/16˝ G4 chains
• 14mm gypsy suitable for 14mm ISO, 14mm DIN766, 1/2˝ G4 chains
• 16mm gypsy suitable for 16mm ISO, 16mm DIN766 chains
