The Quick DUKE vertical capstan windlass, with a 3000W motor power and 24V supply, is a model specified for boats 18–26 m in length. It is compatible with 12/13 mm gypsy and offers high pull and working load values.
| Motor Power | 3000W |
|---|---|
| Voltage | 24V |
| Gypsy | 12/13 mm |
| Maximum Pull | 3000 kg |
| Maximum Working Load | 1200 kg |
| Working Load | 600 kg |
| Amperage at Working Load | 185A |
| Winding Speed (No Load) | 24 m/min. |
| Winding Speed (at Working Load) | 14 m/min. |
| Suitable Boat Length | 18–26 m |

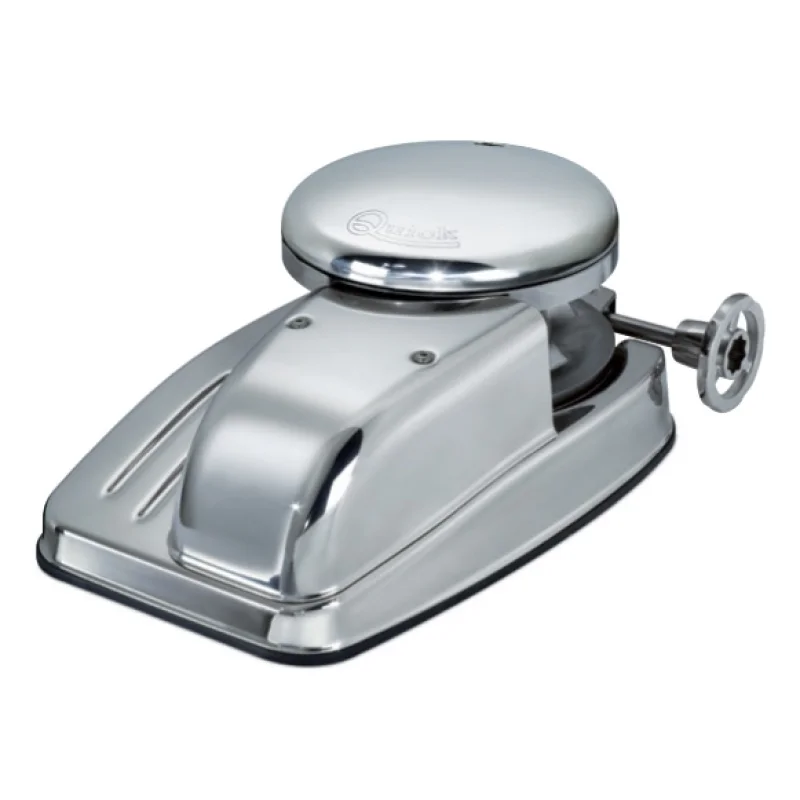

The body, capstan, and gypsy cover are manufactured from AISI 316 stainless steel. The gearbox housing is anodized aluminum. The model is the capstan version of the DUKE series, which is offered with or without a capstan. The 12/13 mm gypsy is defined to be compatible with 12 mm ISO, 13 mm DIN766, and 7/16˝ G4 chains; similarly, the 14 mm gypsy in the series is compatible with 14 mm ISO, 14 mm DIN766, and 1/2˝ G4 chains; and the 16 mm gypsy is compatible with 16 mm ISO and 16 mm DIN766 chains.
The necessary sensor for the optional chain counter connection is mounted as standard on the windlass. The solenoid and remote control are included in the standard equipment. The product is CE approved.
