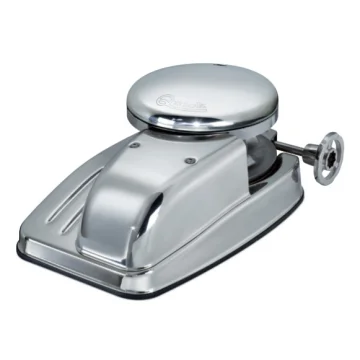

The Quick DUKE drumless windlass operates on 24V voltage and a 3500W motor power. It uses a 16 mm gypsy and offers a maximum pulling capacity of 4000 kg. The maximum working load is 1500 kg, while the standard working load is 700 kg. The amperage consumption at this load is 225A. The hauling speed is 24 m/min, which decreases to 14 m/min under working load. It is a suitable option for boats with a length between 22 and 29 meters.
Its construction utilizes materials resistant to marine conditions, including AISI 316 stainless steel, aluminum, chrome plating, and composite materials. It features a gearbox with an anodized aluminum housing. The necessary sensor for an optional chain counter connection is pre-installed as standard. The solenoid and windlass handle are included in the standard equipment.
- Model: DUKE (Drumless)
- Motor Power: 3500W
- Voltage: 24V
- Gypsy: 16 mm
- Maximum Pull: 4000 kg
- Maximum Working Load: 1500 kg
- Working Load: 700 kg
- Amperage at Working Load: 225A
- Hauling Speed: 24 m/min
- Hauling Speed at Working Load: 14 m/min
- Suitable Boat Length: 22-29 m
