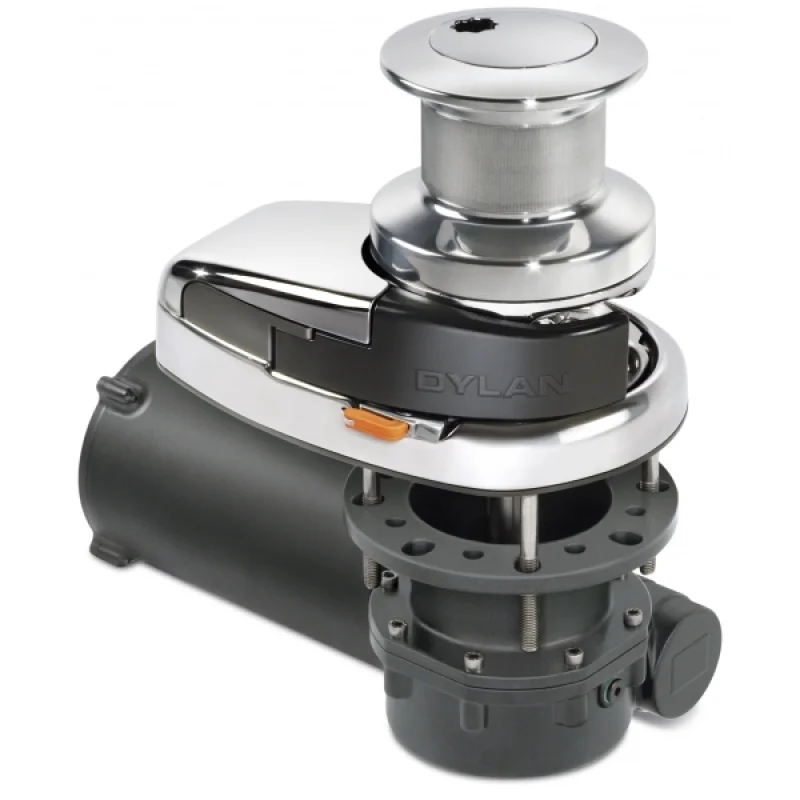

Quick DYLAN vertical windlass with capstan operates with a 1700W motor powered by a 24V supply. Designed with a 12/13 mm chain gypsy and capstan model for boats 14–16 meters in length.

• Type: Vertical windlass, capstan model
• Motor power: 1700W
• Voltage: 24V
• Chain gypsy: 12/13 mm
• Suitable boat length: 14–16 m
• Body material: AISI 316 stainless steel and silver oxide anodized aluminum
• Construction: Anodized aluminum gearbox, chain stripper bar
• Protection class: IP67 waterproof motor
• Weight with capstan: 28.8 kg
• Weight without capstan: 26.4 kg

• Chain gypsy: 10 mm gypsy; for 10 mm DIN766, 10 mm ISO, 3/8" G4, 3/8" BBB chains
• Chain gypsy: 12/13 mm gypsy; for 12 mm ISO, 13 mm DIN766, 7/16" G4 chains
• Rope pulling: Capability to pull 16/18 mm rope with the chain gypsy
• Winding speed (no load): 39.0 m/min.
• Winding speed (under working load): 20.8 m/min.
• Maximum pull: 1200 kg
• Maximum working load: 570 kg
• Working load: 190 kg
• Current at working load: 95 A

• Manual free-fall system
• Manual retrieval system for emergencies
• Option for version with or without capstan
• Sensor on windlass for optional chain counter connection is standard
• Solenoid and remote control are standard equipment
• CE approved construction
