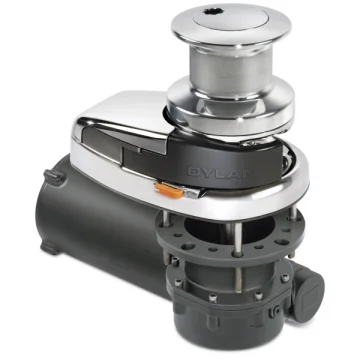

The Quick DYLAN vertical capstan winch is a mooring and anchoring equipment with a 12/13 mm gypsy, featuring a 2000W motor power and 24V voltage. It is designed for boats in the 15-20 meter length range.

• Product type: Vertical, capstan winch
• Motor power: 2000W
• Voltage: 24V
• Gypsy: 12/13 mm
• Suitable boat length: 15-20 m
• Maximum pull: 1300 kg
• Maximum working load: 750 kg
• Working load: 250 kg
• Amperage at working load: 115A
• Winding speed (no load): 35.0 m/min.
• Winding speed (at working load): 22.3 m/min.
• Weight without capstan: 31.4 kg
• Weight with capstan: 33.4 kg

The winch is manufactured with an AISI 316 stainless steel and silver oxide anodized aluminum body, an anodized aluminum gearbox, and an IP67-rated waterproof motor. It offers the capability to pull 16/18 mm rope with the chain gypsy, a manual free-fall system, an emergency manual retrieval system, and standard mounting provisions for a chain stripper and chain counter sensor. The solenoid and winch handle are included as standard equipment.

• Option with or without capstan
• 10 mm gypsy: Compatible with 10 mm DIN766, 10 mm ISO, 3/8" G4, 3/8" BBB chains
• 12/13 mm gypsy: Compatible with 12 mm ISO, 13 mm DIN766, 7/16" G4 chains
• CE-approved construction
