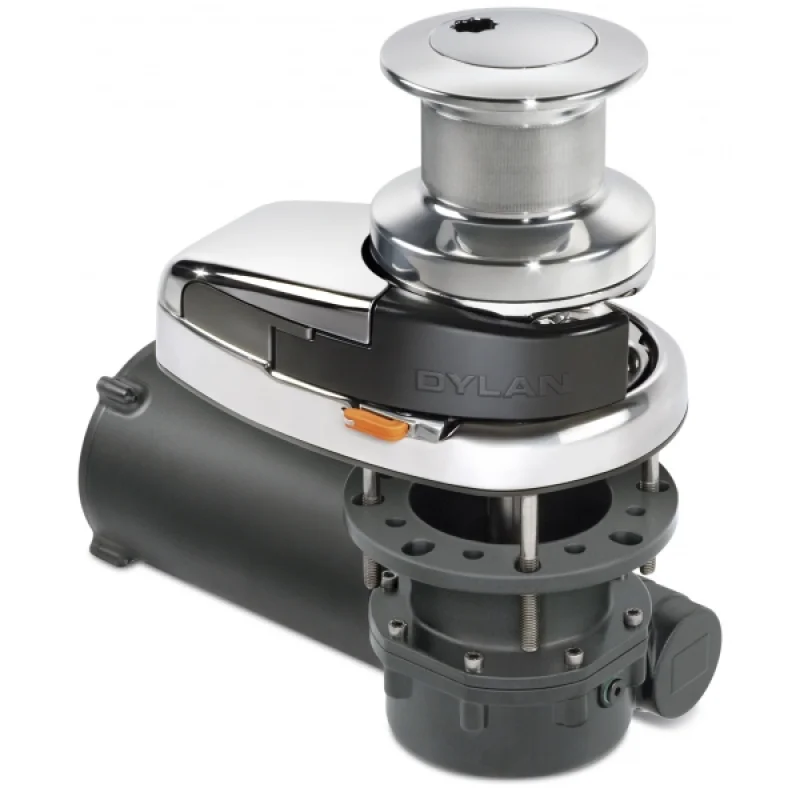

The Quick DYLAN vertical windlass with gypsy is a model that operates with a 1700W motor power and 24V supply, featuring a 10 mm gypsy. It is designed with an AISI 316 stainless steel and silver oxide anodized aluminum body structure.
- Type: Vertical windlass, gypsy model
- Motor power: 1700W
- Voltage: 24V
- Gypsy: 10 mm
- Suitable boat length: 14–16 m
- Body material: AISI 316 stainless steel and silver oxide anodized aluminum
- IP class: IP67 waterproof motor
- Gearbox: Anodized aluminum
- Maximum pull: 1200 kg
- Maximum working load: 570 kg
- Working load: 190 kg
- Working current: 95 A
- Winding speed (no load): 39.0 m/min.
- Winding speed (at working load): 20.8 m/min.
- Weight without gypsy: 26.4 kg
- Weight with gypsy: 28.8 kg
The windlass is designed to allow pulling of 16/18 mm rope with the chain gypsy and includes a manual free-fall system, emergency manual retrieval system, and a chain stripper bar. The 10 mm gypsy is compatible with 10 mm DIN766, 10 mm ISO, 3/8" G4, and 3/8" BBB chains, while the 12/13 mm gypsy is compatible with 12 mm ISO, 13 mm DIN766, and 7/16" G4 chains.
The necessary sensor for the optional chain counter connection is mounted as standard on the windlass. The solenoid and winch handle are also among the standard equipment.
