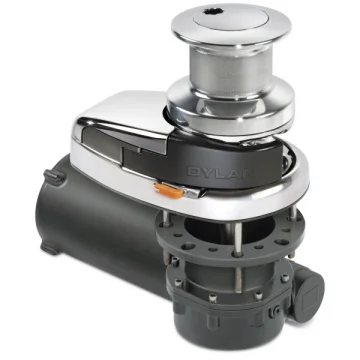

The Quick DYLAN vertical windlass with gypsy, featuring a 1700W motor power, 12V voltage, and a 12/13 mm gypsy, is a model designed for the anchoring systems of medium-sized boats.

• Vertical windlass, gypsy model
• Motor power: 1700W
• Voltage: 12V
• Gypsy: 12/13 mm
• 10 mm gypsy: Compatible with 10 mm DIN766, 10 mm ISO, 3/8" G4, 3/8" BBB chains
• 12/13 mm gypsy: Compatible with 12 mm ISO, 13 mm DIN766, 7/16" G4 chains
• Maximum pull: 1100 kg
• Maximum working load: 470 kg
• Working load: 155 kg
• Current at working load: 170 A
• Winding speed (no load): 35.2 m/min.
• Winding speed (at working load): 13.2 m/min.
• Weight without gypsy: 26.2 kg
• Weight with gypsy: 28.2 kg
• Suitable boat length: 14–16 m

The body structure utilizes AISI 316 stainless steel, anodized aluminum, chrome plating, and composite materials. It is equipped with an IP67 class waterproof motor, anodized aluminum gearbox, chain stripper bar, manual free-fall system, and an emergency manual retrieval system. Solenoid and windlass handle are included as standard equipment. It is CE approved, and the sensor required for the optional chain counter connection is mounted as standard on the windlass.
