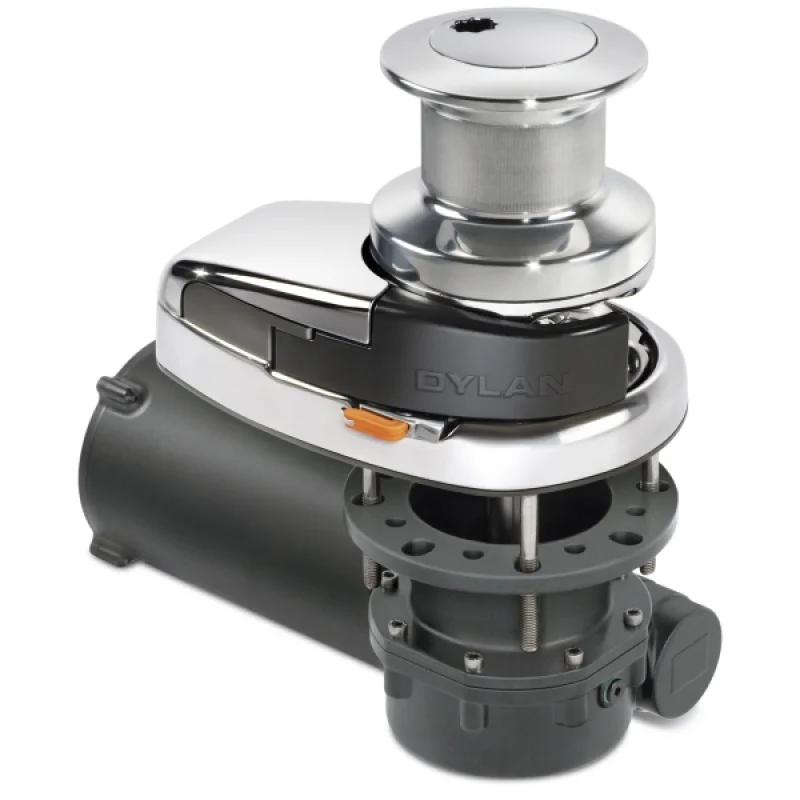

The Quick DYLAN vertical capstan windlass, with a 2000W motor power and 24V supply, is a model designed for mooring and anchoring applications on boats 15-20 m in length. It features a body structure manufactured from AISI 316 stainless steel, ser oxide anodized aluminum, chrome plating, and composite materials.

It is equipped with an IP67-rated waterproof motor, anodized aluminum gearbox, chain stripper bar, manual free-fall system, and an emergency manual retrieval system. The solenoid and windlass handle are included among the standard equipment. The necessary sensor for chain counter connection is standardly mounted on the windlass.

• Type: Vertical windlass, capstan model (drumless version also available)
• Body material: AISI 316 stainless steel and ser oxide anodized aluminum
• Motor power: 2000W
• Voltage: 24V
• Chain gypsy: 10 mm
• Suitable boat length: 15-20 m
• Maximum pull: 1300 kg
• Maximum working load: 750 kg
• Working load: 250 kg
• Amperage at working load: 115 A
• Retrieval speed (no load): 35.0 m/min.
• Retrieval speed (at working load): 22.3 m/min.
• Weight without drum: 31.4 kg
• Weight with drum: 33.4 kg

• Option for use with or without a drum
• Capability to retrieve 16/18 mm rope with the chain gypsy
• Manual free-fall system
• Emergency manual retrieval system
• Chain stripper bar
• IP67-rated waterproof motor
• Anodized aluminum gearbox
• 10 mm gypsy: Compatible with 10 mm DIN766, 10 mm ISO, 3/8" G4, 3/8" BBB chains
• 12/13 mm gypsy: Compatible with 12 mm ISO, 13 mm DIN766, 7/16" G4 chains
• Sensor for optional chain counter connection is ready on the windlass
