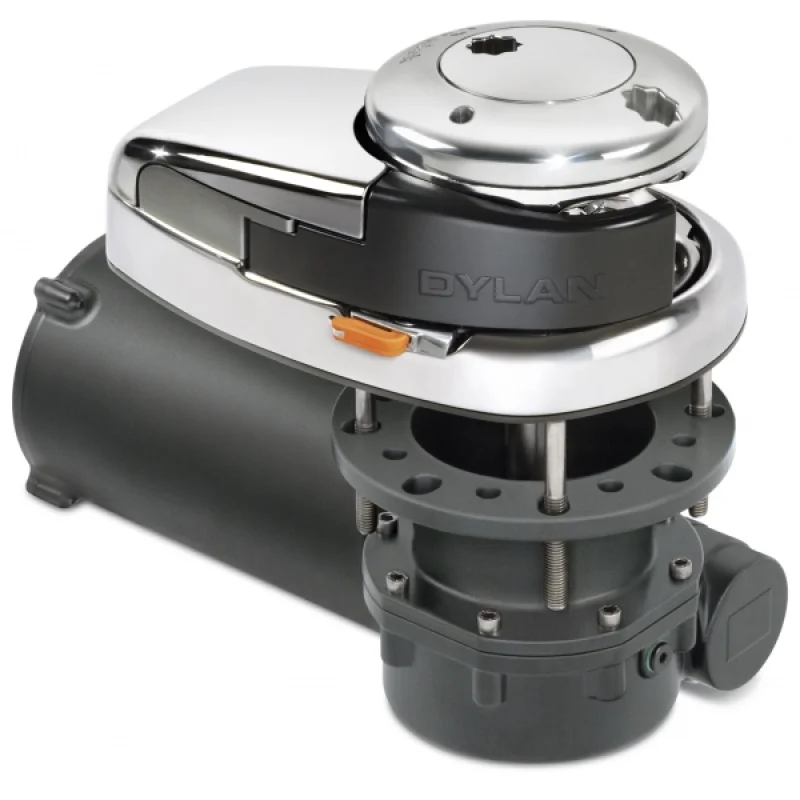

The Quick DYLAN vertical windlass, with its drumless model design, is an anchor windlass designed for 14-16 m boat lengths, with a power of 1700W and 24V supply. It is configured for use with chain and rope systems compatible with a 12/13 mm gypsy structure.
| Technical Specification | Value |
|---|---|
| Product type | Vertical, drumless windlass |
| Brand / Model | Quick DYLAN |
| Motor power | 1700W |
| Voltage | 24V |
| Gypsy | 12/13 mm |
| Suitable boat length | 14-16 m |
| Maximum pull | 1200 kg |
| Maximum working load | 570 kg |
| Working load | 190 kg |
| Operating current | 95 A |
| Retrieval speed (no load) | 39.0 m/min |
| Retrieval speed (at working load) | 20.8 m/min |
| Weight without drum | 26.4 kg |
| Weight with drum | 28.8 kg |
The body structure utilizes AISI 316 stainless steel, ser oxide anodized aluminum, chrome plating, and composite materials. It offers the capability to pull 16/18 mm rope with the chain gypsy. It is equipped with a manual free-fall system, an emergency manual retrieval system, and a chain stripper bar.
It features an IP67 class waterproof motor and an anodized aluminum gearbox. The 10 mm gypsy is compatible with 10 mm DIN766, 10 mm ISO, 3/8" G4, and 3/8" BBB chains, while the 12/13 mm gypsy is compatible with 12 mm ISO, 13 mm DIN766, and 7/16" G4 chains. Solenoid and windlass handle are included in the standard equipment.
