The Quick DYLAN vertical windlass is a drumless model designed for anchoring solutions using 12/13 mm chain links and suitable for boats ranging from 15 to 20 meters in length. It features a 2000W motor and operates on 24V systems.
| General Specifications | |
|---|---|
| Product type | Vertical windlass, drumless model |
| Body material | AISI 316 stainless steel and silver oxide anodized aluminum body |
| Chain link | 12/13 mm |
| Suitable boat length | 15–20 m |
| Weight without drum | 31.4 kg |
| Weight with drum | 33.4 kg |
| Technical Specifications | |
|---|---|
| Motor power | 2000 W |
| Voltage | 24 V |
| Maximum pull | 1300 kg |
| Maximum working load | 750 kg |
| Working load | 250 kg |
| Amperage at working load | 115 A |
| Winding speed (no load) | 35.0 m/min |
| Winding speed (at working load) | 22.3 m/min |
- IP67 rated waterproof motor
- Anodized aluminum gearbox
- Manual free-fall system
- Manual retrieval system for emergencies
- Chain stripper bar
- 10 mm chain link: Compatible with 10 mm DIN766, 10 mm ISO, 3/8" G4, 3/8" BBB chains
- 12/13 mm chain link: Compatible with 12 mm ISO, 13 mm DIN766, 7/16" G4 chains
- Sensor for optional chain counter connection is pre-installed as standard on the windlass
- Solenoid and remote control are standard equipment
- CE certified
Stock Code
:
1824987097

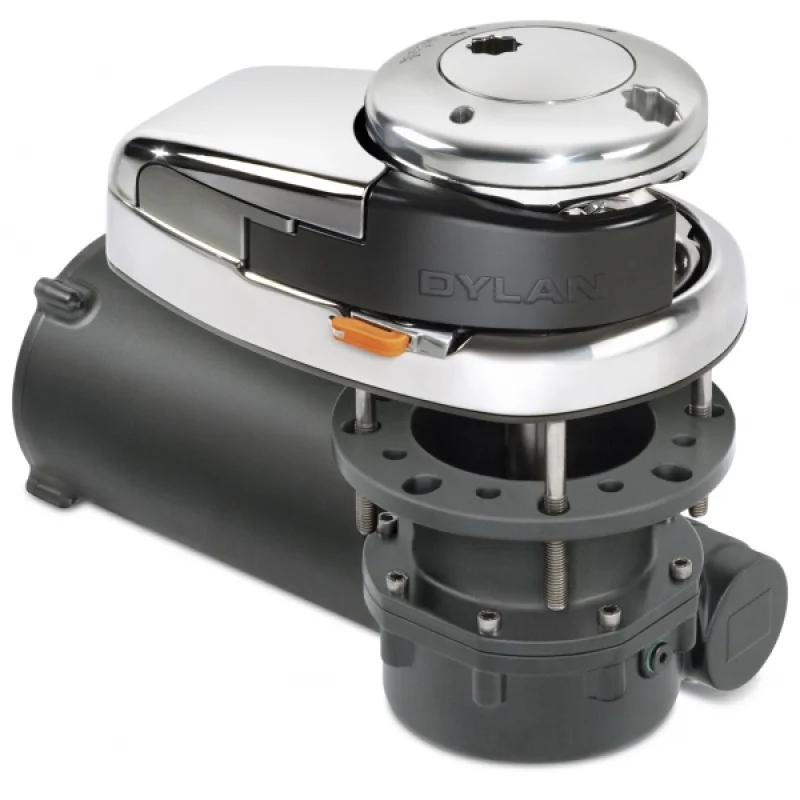

Quick DYLAN. Drumless model.
Quick DYLAN 2000W 24V vertical capstan windlass, suitable for 12/13 mm chain and 15-20 m boat length.
