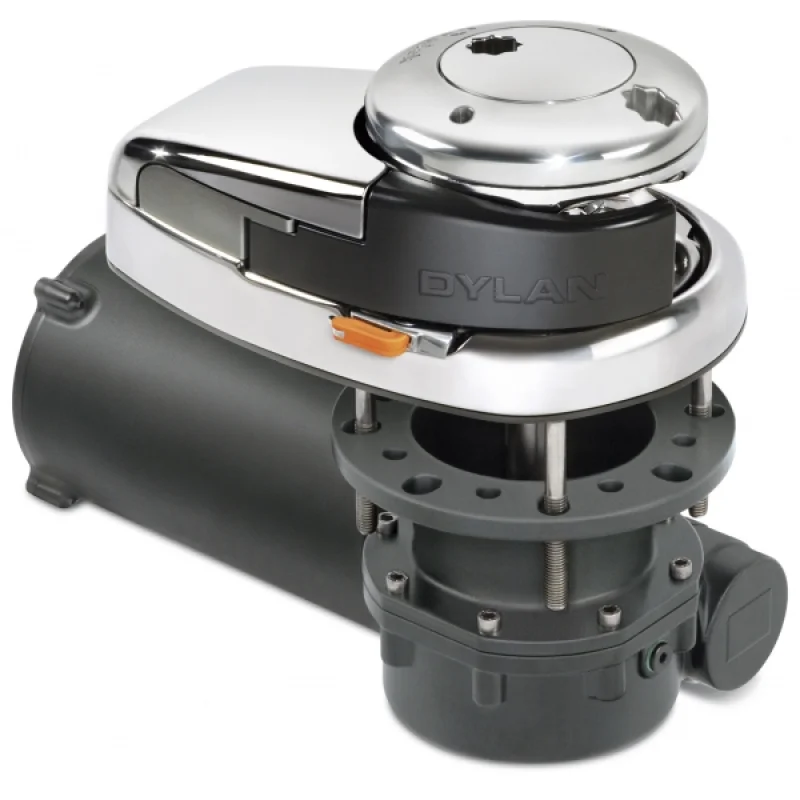

The Quick DYLAN vertical windlass without gypsy is an anchor windlass designed for 12V systems, featuring a 1700W motor power and a 12/13 mm chain gypsy.

• Type: Vertical windlass, model without gypsy
• Motor power: 1700W
• Voltage: 12V
• Gypsy: 12/13 mm
• Suitable boat length: 14–16 m
• IP rating: IP67 waterproof motor
• Body: AISI 316 stainless steel and hard anodized aluminum body
• Gearbox: Anodized aluminum
• Maximum pull: 1100 kg
• Maximum working load: 470 kg
• Working load: 155 kg
• Amperage at working load: 170 A
• Retrieval speed (no load): 35.2 m/min.
• Retrieval speed (at working load): 13.2 m/min.
• Weight without gypsy: 26.2 kg
• Weight with gypsy: 28.2 kg

• Manual free-fall system
• Manual retrieval system for emergencies
• Chain stripper bar
• 10 mm gypsy: Compatible with 10 mm DIN766, 10 mm ISO, 3/8" G4, 3/8" BBB chains
• 12/13 mm gypsy: Compatible with 12 mm ISO, 13 mm DIN766, 7/16" G4 chains
• Solenoid and remote control are standard equipment.
• A sensor for optional chain counter connection is standard mounted on the windlass.
