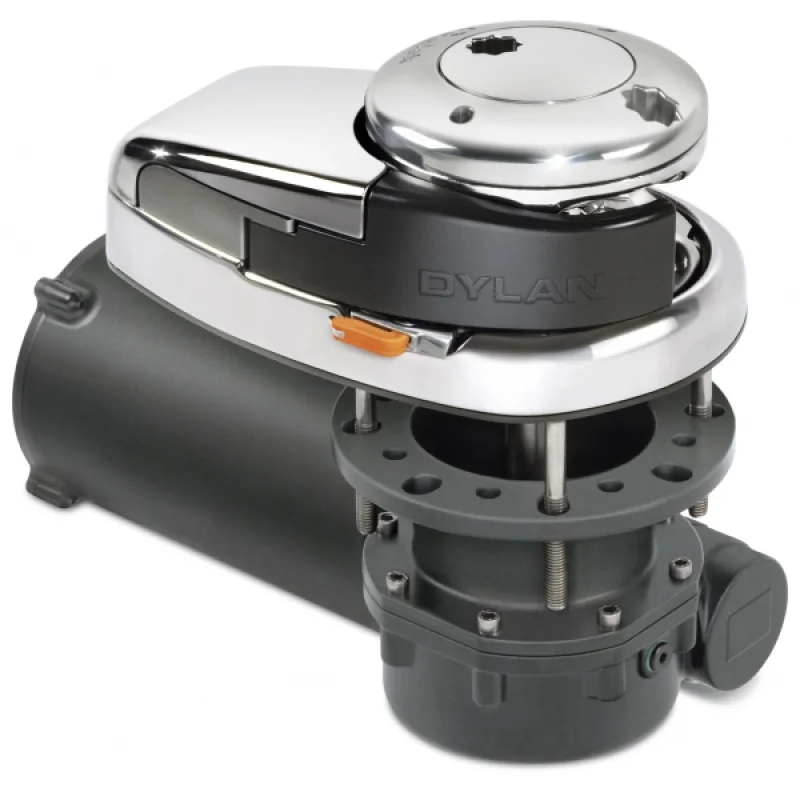

The Quick DYLAN vertical windlass is a deck windlass designed for chain and rope retrieval with a 10 mm chain link, featuring a drumless model structure. It has a body made of AISI 316 stainless steel and silver oxide anodized aluminum.

Its 2000W power, 24V supply motor has an IP67 class waterproof structure. It comes with an anodized aluminum gearbox and chain press bar. It includes a manual free-fall system and an emergency manual retrieval system.

The windlass has the necessary sensor for an optional chain counter connection pre-installed as standard. The solenoid and remote control are also among the standard equipment.

• Product type: Vertical, drum/drumless windlass (this model is drumless)
• Body material: AISI 316 stainless steel and silver oxide anodized aluminum
• Motor power: 2000W
• Voltage: 24V
• Chain link: 10 mm
• Suitable chains (10 mm link): 10 mm DIN766, 10 mm ISO, 3/8" G4, 3/8" BBB
• Suitable chains (12/13 mm link): 12 mm ISO, 13 mm DIN766, 7/16" G4
• Maximum pull: 1300 kg
• Maximum working load: 750 kg
• Working load: 250 kg
• Current at working load: 115 A
• Retrieval speed (no load): 35.0 m/min.
• Retrieval speed (at working load): 22.3 m/min.
• Weight without drum: 31.4 kg
• Weight with drum: 33.4 kg
• Suitable boat length: 15–20 m
• Protection class: IP67 waterproof motor
• Other features: Chain press bar, manual free-fall, emergency manual retrieval system, integrated sensor for optional chain counter, solenoid and remote control are standard equipment
