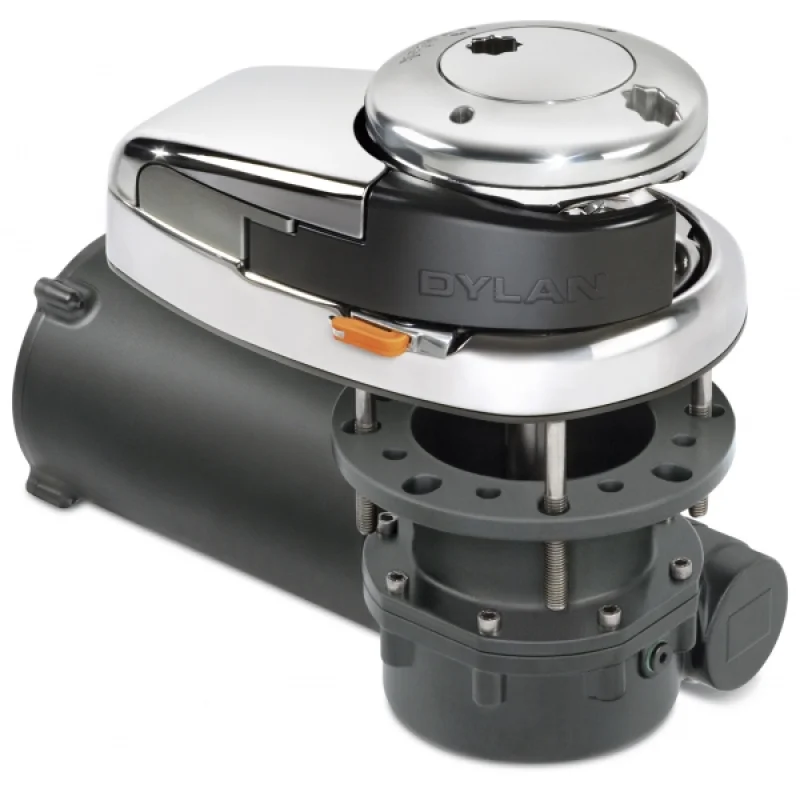

The Quick DYLAN vertical windlass, with its drumless model design, is an anchor windlass designed for chain and rope retrieval using 10 mm chain links. With a 1700W motor power and 12V supply, it is suitable for boats ranging from 14 to 16 meters in length.

• Type: Vertical windlass with drum and drumless options (this model is drumless)
• Body material: AISI 316 stainless steel and ser oxide anodized aluminum
• Motor power: 1700W
• Voltage: 12V
• Chain link: 10 mm
• Suitable chains (10 mm link): 10 mm DIN766, 10 mm ISO, 3/8" G4, 3/8" BBB
• Suitable chains (12/13 mm link): 12 mm ISO, 13 mm DIN766, 7/16" G4
• Maximum pull: 1100 kg
• Maximum working load: 470 kg
• Working load: 155 kg
• Amperage at working load: 170A
• Retrieval speed (no load): 35.2 m/min.
• Retrieval speed (at working load): 13.2 m/min.
• Drumless weight: 26.2 kg
• Weight with drum: 28.2 kg
• Suitable boat length: 14–16 m
• Motor protection class: IP67 waterproof motor
• Gearbox: Anodized aluminum
• Additional features: Manual free-fall system, emergency manual retrieval system, chain stripper bar
• Standard equipment: Solenoid and windlass handle
• Chain counter sensor: Sensor for optional chain counter connection is standard mounted on the windlass
