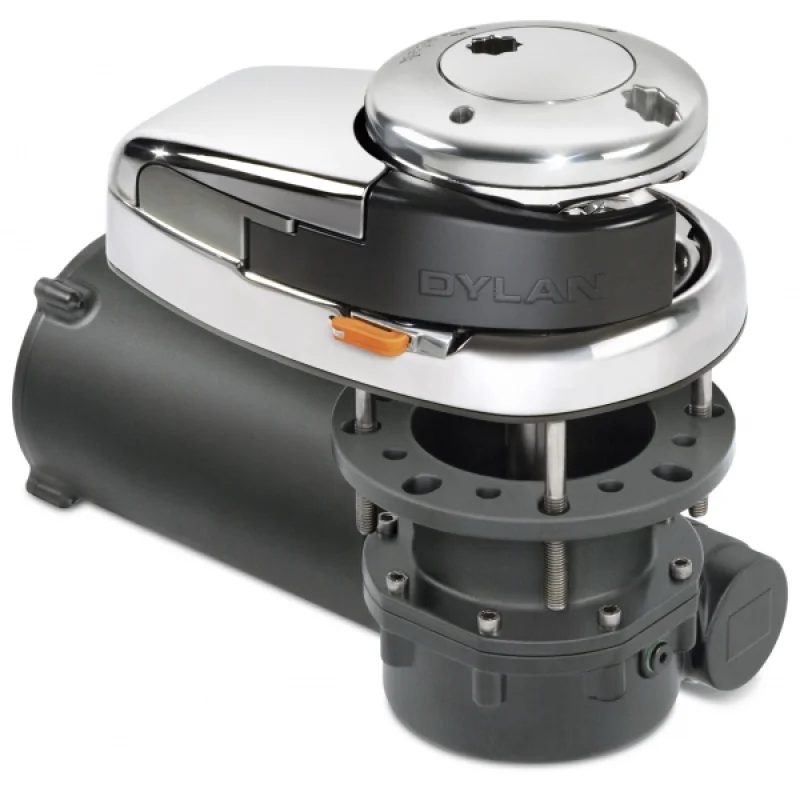

The Quick DYLAN vertical windlass, with its drumless model design, is an anchor windlass designed for boats 14–16 meters in length. It is compatible with 10 mm chain using a 10 mm gypsy, suitable for 10 mm DIN766, 10 mm ISO, 3/8" G4, and 3/8" BBB chains.

General Specifications
Product type	Vertical, drumless windlass
Model	Quick DYLAN
Gypsy	10 mm
Suitable boat length	14–16 m
Weight without drum	26.4 kg
Weight with drum	28.8 kg

Material and Construction
Body	AISI 316 stainless steel and silver oxide anodized aluminum
Gearbox	Anodized aluminum
Motor protection	IP67 rated waterproof motor
Additional features	Chain stripper bar, manual free-fall system, emergency manual retrieval system

Electrical and Performance Values
Motor power	1700 W
Voltage	24 V
Maximum pull	1200 kg
Maximum working load	570 kg
Working load	190 kg
Amperage at working load	95 A
Retrieval speed (no load)	39.0 m/min.
Retrieval speed (at working load)	20.8 m/min.

10 mm gypsy: Suitable for 10 mm DIN766, 10 mm ISO, 3/8" G4, 3/8" BBB chains.
The sensor required for the optional chain counter connection is mounted as standard on the windlass.
Solenoid and windlass handle are standard equipment.

Stock Code : 38504465
