Quick GENIUS GP2 1500 D horizontal windlass with gypsy, designed for use on boats 6-10 m in length, features a 500 W 12 V motor and a compact body structure. Its 6 mm gypsy is compatible with 6 mm DIN766 and 6 mm ISO chains.
The body structure utilizes AISI 316 stainless steel, aluminum, chrome plating, and composite materials. It features an IP66 rated waterproof motor, an epicyclical gearbox, and a stainless steel drum with gypsy cover. It is CE certified. The sensor required for the optional chain counter connection is mounted as standard on the windlass. The solenoid and winch handle are included as standard equipment.
| Model | GP2 1500 D |
|---|---|
| Motor Power | 500 W |
| Voltage | 12 V |
| Maximum Pull | 680 kg |
| Maximum Working Load | 250 kg |
| Working Load | 85 kg |
| Amperage at Working Load | 76 A |
| Winding Speed | 25.5 m/min |
| Winding Speed (at Working Load) | 10.3 m/min |
| Gypsy | 6 mm |
| Suitable Boat Length | 6-10 m |
- Horizontal windlass design
- Anodized aluminum hard oxide body
- Option for version with or without drum
- Stainless steel drum and gypsy cover
- Capability to pull 12/14/16 mm rope with chain gypsy
- Chain stripper bar
- IP66 rated waterproof motor
- Epicyclical gearbox
- 6 mm gypsy: suitable for 6 mm DIN766, 6 mm ISO chains
- 8 mm gypsy: suitable for 8 mm DIN766, 8 mm ISO, 5/16" BBB chains
Stock Code
:
2875894868

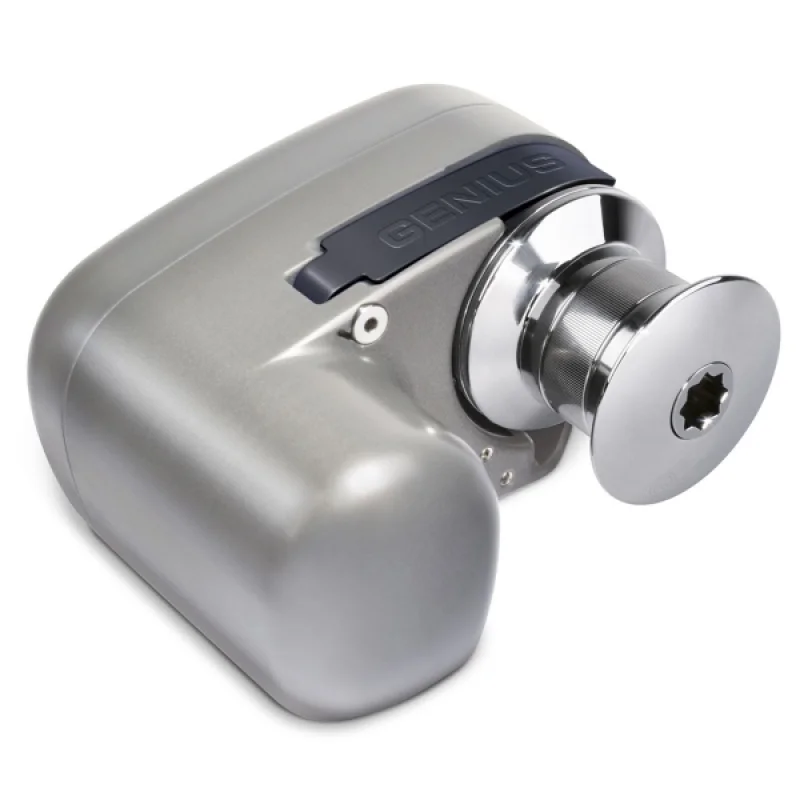

Quick GENIUS GP2. Drum model.
Quick GENIUS GP2 1500 D horizontal anchor winch, 500 W, 12 V, for 6-10 m boats, 6 mm chain, maximum 680 kg pulling capacity.
