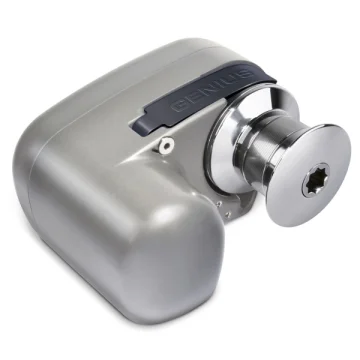

Quick GENIUS GP2 2000 D is a horizontal windlass with a gypsy, designed for use on boats 8-13 meters in length, powered by a 24 V 800 W motor. It is manufactured from a combination of stainless steel, anodized aluminum, chrome plating, and composite materials.

Model	GP2 2000 D
Motor Power	800 W
Voltage	24 V
Maximum Pull	900 kg
Maximum Working Load	350 kg
Working Load	120 kg
Current at Working Load	50 A
Winding Speed	29.6 m/min
Winding Speed (at Working Load)	20 m/min
Gypsy	8 mm
Suitable Boat Length	8-13 m

The body structure utilizes AISI 316 stainless steel, hard anodized aluminum, chrome plating, and composite materials. The drum and gypsy cover are made of stainless steel. The product is CE certified.

Horizontal windlass design
Option with or without drum
Stainless steel drum and gypsy cover
Capable of pulling 12/14/16 mm rope with chain gypsy
Chain stripper bar
IP66 rated waterproof motor
Epicyclical gearbox
6 mm gypsy: Suitable for 6 mm DIN766, 6 mm ISO chains
8 mm gypsy: Suitable for 8 mm DIN766, 8 mm ISO, 5/16" BBB chains

The sensor required for the optional chain counter connection is mounted as standard on the windlass. The solenoid and remote control are included as standard equipment.

Stock Code : 3320198044
