Quick GENIUS GP2 500 is a horizontal windlass without a gypsy, designed with a 150 W 12 V motor and a compact composite body, making it a model that can be integrated into the anchoring system of boats 6-8 meters in length. It is manufactured from AISI 316 stainless steel, aluminum, chrome plating, and composite materials and holds CE certification.
| Model | GP2 500 |
|---|---|
| Motor Power | 150 W |
| Voltage | 12 V |
| Maximum Pull | 220 kg |
| Maximum Working Load | 70 kg |
| Working Load | 35 kg |
| Current at Working Load | 29 A |
| Retrieval Speed | 38.9 m/min |
| Retrieval Speed (at Working Load) | 28.5 m/min |
| Chain | 6 mm |
| Suitable Boat Length | 6-8 m |
- Horizontal windlass design without a gypsy
- Composite body
- AISI 316 stainless steel and aluminum components
- Stainless steel chain cover
- Capability to pull 12/14/16 mm rope with chain gypsy
- Chain stripper bar
- IP66 rated waterproof motor
- Epicyclical gearbox
- 6 mm chain; compatible with 6 mm DIN766 and 6 mm ISO chains
- Sensor for optional chain counter connection is standard mounted on the windlass
- Solenoid and windlass handle are standard equipment
- CE certified
Stock Code
:
3627739706

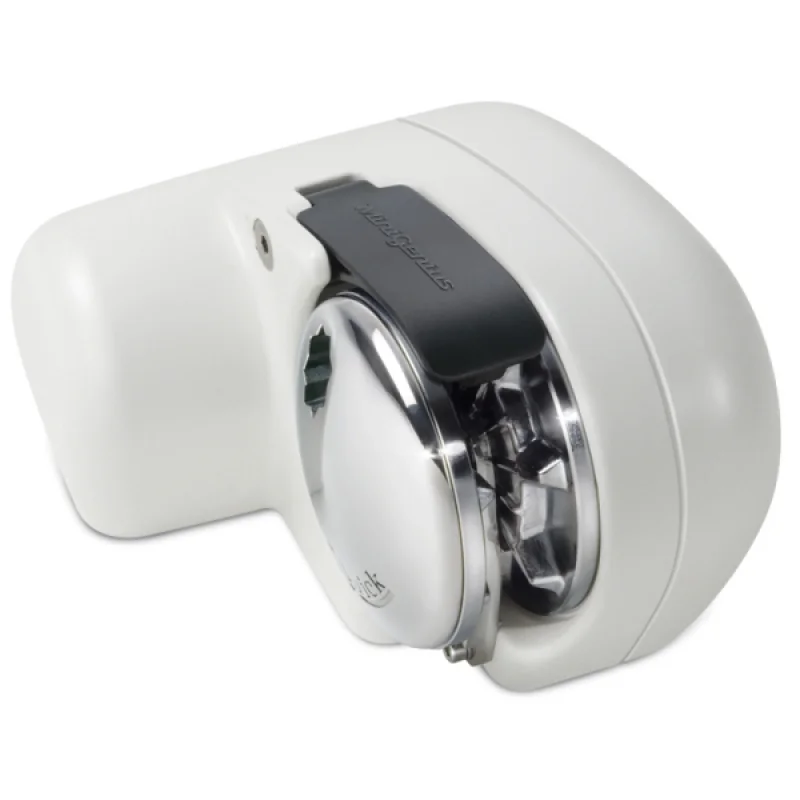

Quick GENIUS GP2. Drumless model.
Quick GENIUS GP2 500 horizontal anchor windlass without gypsy, 150 W, 12 V, with a maximum pulling capacity of 220 kg, suitable for 6-8 m boats.
