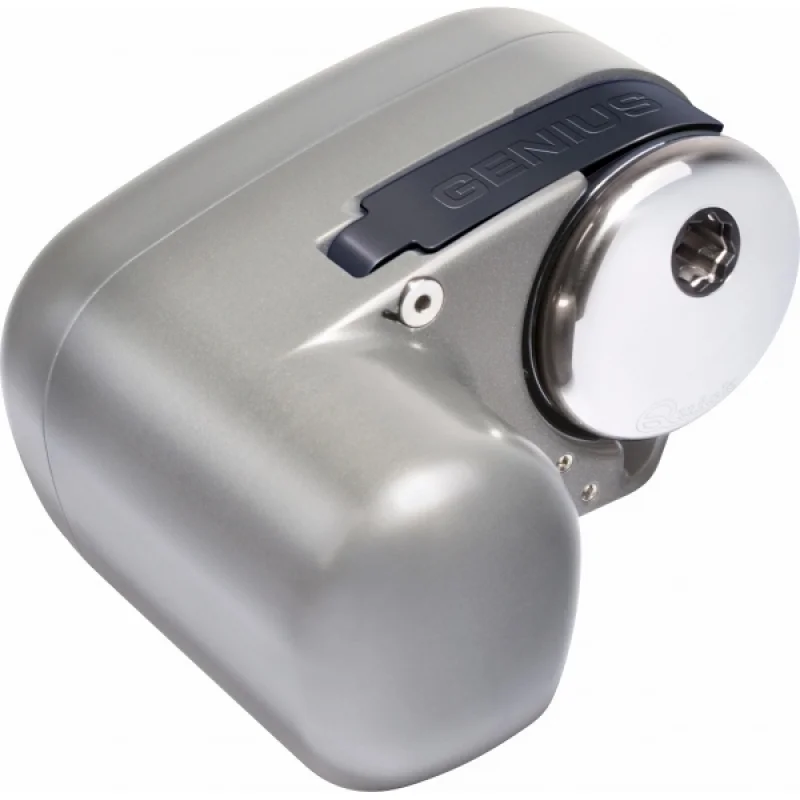

Quick GENIUS GP2 2000 is a horizontal, drumless anchor windlass, operating at 24 V with a motor power of 800 W. Designed for use in the anchoring systems of boats and yachts, it features a 900 kg maximum pull capacity and is suitable for vessels in the 8-13 m length range.
Its body construction utilizes materials compatible with the marine environment, including AISI 316 stainless steel, aluminum, chromed, and composite materials. It features an anodized aluminum hard oxide body, with a stainless steel drum and gypsy cover. It offers a protected drive system with an IP66-rated waterproof motor and an epicyclical gearbox.
The windlass comes standard with the necessary sensor pre-mounted for a chain counter connection. It is CE approved. The solenoid and winch handle are included as standard equipment. The model is available in drum or drumless versions; this product is the drumless model.
| Model | GP2 2000 |
|---|---|
| Motor Power | 800 W |
| Voltage | 24 V |
| Maximum Pull | 900 kg |
| Maximum Working Load | 350 kg |
| Working Load | 120 kg |
| Current at Working Load | 50 A |
| Winding Speed | 29.6 m/min |
| Winding Speed (at Working Load) | 20 m/min |
| Gypsy | 6 mm |
| Suitable Boat Length | 8-13 m |
- Horizontal windlass design
- Anodized aluminum hard oxide body
- Drum or drumless version option (this product: drumless)
- Stainless steel drum and gypsy cover
- Capability to pull 12/14/16 mm rope with chain gypsy
- Chain stripper bar
- IP66-rated waterproof motor
- Epicyclical gearbox
- 6 mm gypsy: Compatible with 6 mm DIN766, 6 mm ISO chains
- 8 mm gypsy: Compatible with 8 mm DIN766, 8 mm ISO, 5/16" BBB chains
- CE approved construction
- Chain counter sensor pre-mounted on the windlass
- Solenoid and winch handle are standard equipment
