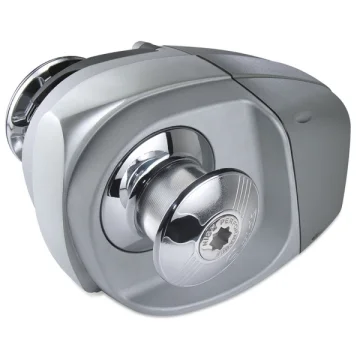

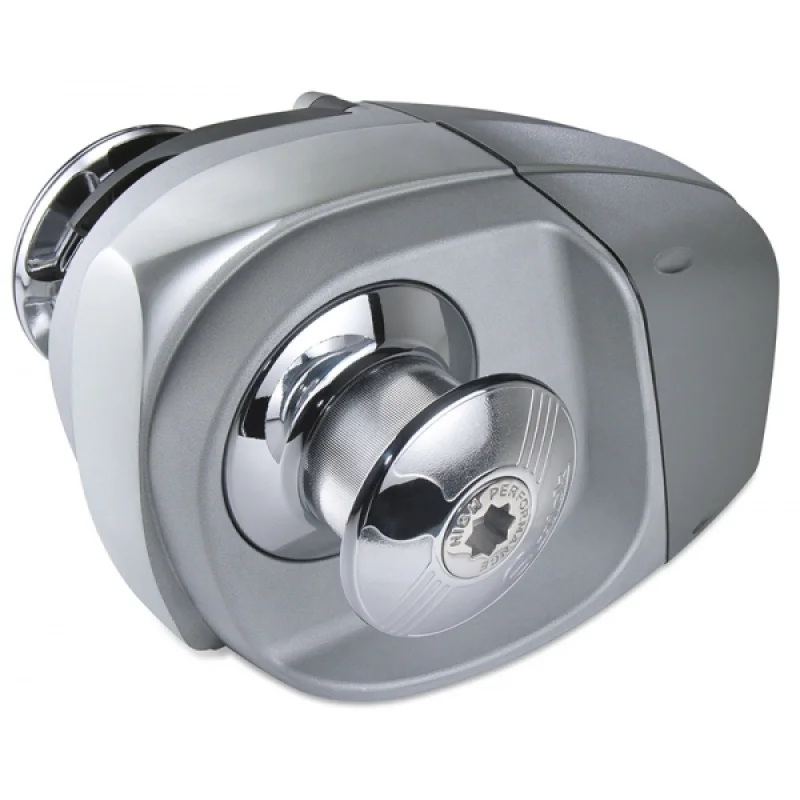

Quick HECTOR is a horizontal drum windlass model, designed with a 1000W motor power and 24V supply for boats in the 10-13 meter length range. It can be used in anchoring systems with chain and rope combinations using a 10 mm gypsy.

Its body construction utilizes AISI 316 stainless steel, aluminum, chrome plating, and composite materials. It comes with an IP66 class waterproof motor, integrated solenoid unit, and manual release system. The necessary sensor for the optional chain counter connection is mounted as standard on the windlass. It is CE certified.

• Motor power: 1000W
• Voltage: 24V
• Type: Horizontal, drum windlass
• Gypsy: 10 mm
• Maximum pull: 1100 kg
• Maximum working load: 490 kg
• Nominal working load: 160 kg
• Amperage at working load: 80A
• Winding speed (no load): 39.6 m/min
• Winding speed (at working load): 21 m/min
• Suitable boat length: 10-13 m

• Anodized aluminum / composite body
• Capability for drum use
• Ability to pull 14/16/18 mm rope with chain gypsy
• Chain stripper bar
• IP66 class waterproof motor
• 8 mm gypsy: Compatible with 8 mm DIN766, 8 mm ISO, 5/16" G4, 5/16" BBB chains
• 10 mm gypsy: Compatible with 10 mm DIN766, 10 mm ISO, 3/8" G4 chains
• 12/13 mm gypsy: Compatible with 12 mm ISO, 13 mm DIN766 chains
