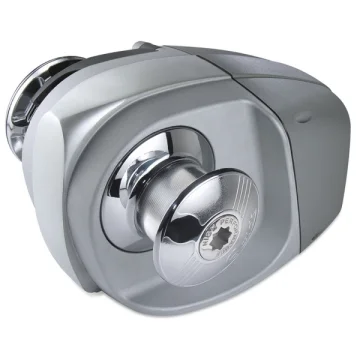

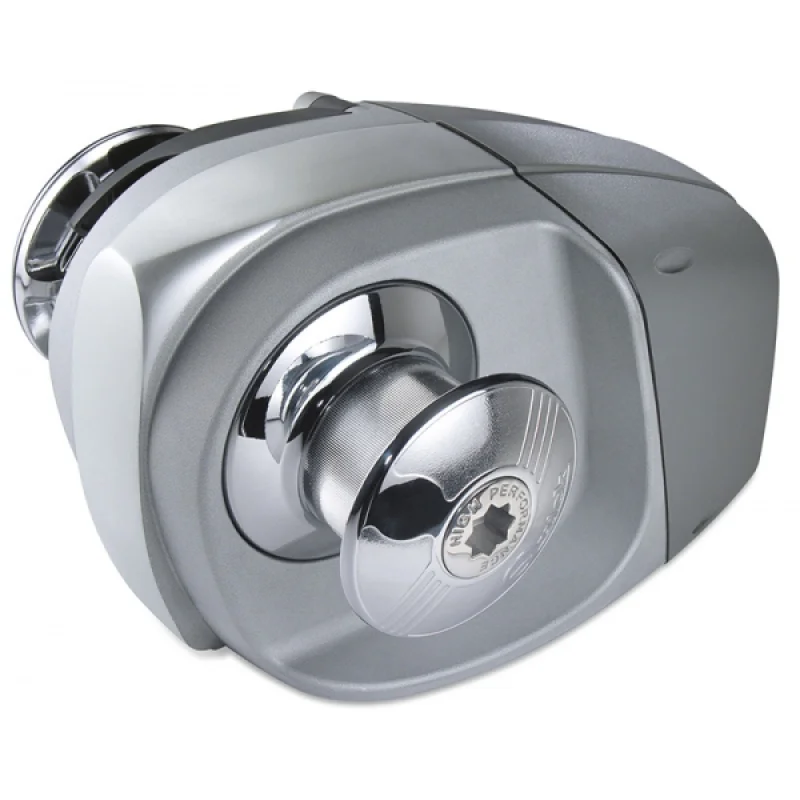

The Quick HECTOR horizontal capstan windlass, with a 1000W motor power, 12V voltage, and an 8 mm gypsy, is designed for use with various chain and rope combinations. Its body is manufactured from anodized aluminum and composite material.

• Motor power: 1000W
• Voltage: 12V
• Gypsy: 8 mm
• Maximum pull: 1300 kg
• Maximum working load: 400 kg
• Working load: 130 kg
• Amperage at working load: 140A
• Winding speed (no load): 37.3 m/min
• Winding speed (at working load): 17.8 m/min
• Suitable boat length: 10–13 m

The 8 mm gypsy is compatible with 8 mm DIN766, 8 mm ISO, 5/16" G4, and 5/16" BBB chains. It comes with a manual release system, chain stripper bar, and integrated solenoid unit. It features an IP66 rated waterproof motor construction.
