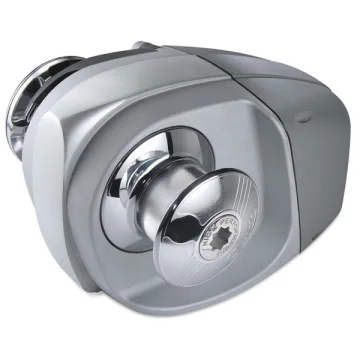

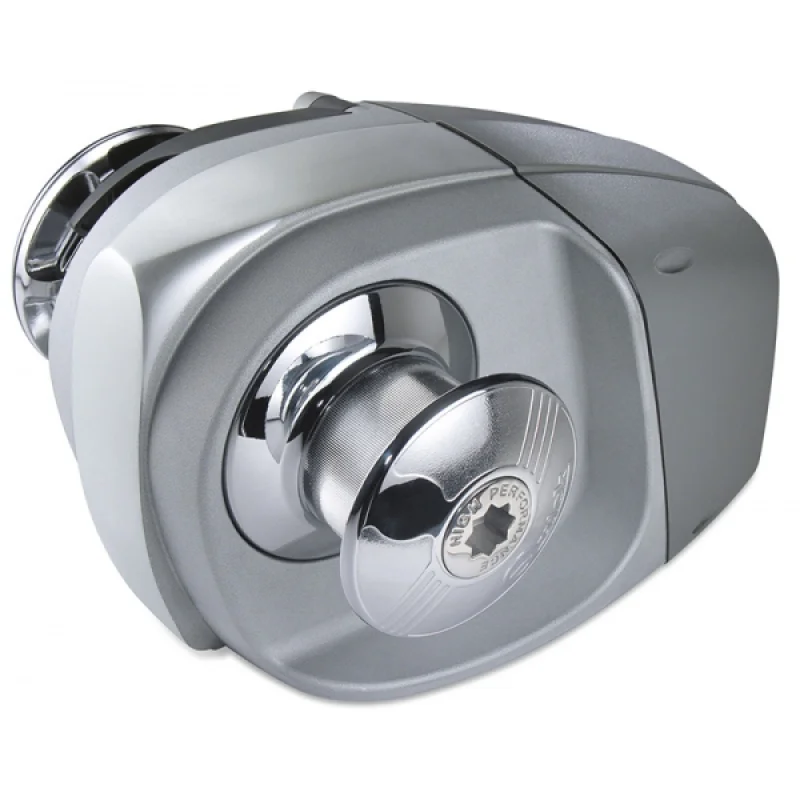

Quick HECTOR is a horizontal windlass with a gypsy, featuring a 1500W motor power and 24V supply, designed for 10 mm chain. It is manufactured from anodized aluminum and composite body with AISI 316 stainless steel, aluminum, chrome plating, and composite materials.

Its IP66-rated waterproof motor, integrated solenoid unit, and manual release system provide controlled operation for chain and rope retrieval. The chain stripper and connection for a chain counter sensor are standard on the windlass. The solenoid and handle are standard equipment.

• Motor power: 1500W
• Voltage: 24V
• Gypsy: 10 mm
• Maximum pull: 1500 kg
• Maximum working load: 550 kg
• Working load: 185 kg
• Current at working load: 85A
• Retrieval speed (no load): 40 m/min.
• Retrieval speed (at working load): 19.2 m/min.
• Suitable boat length: 12–15 m

• Horizontal windlass design
• Anodized aluminum / composite body
• Gypsy model
• Capable of retrieving 14/16/18 mm rope with chain gypsy
• Manual release system
• Chain stripper
• Integrated solenoid unit
• IP66-rated waterproof motor
• 8 mm gypsy: Suitable for 8 mm DIN766, 8 mm ISO, 5/16" G4, 5/16" BBB chains
• 10 mm gypsy: Suitable for 10 mm DIN766, 10 mm ISO, 3/8" G4 chains
• 12/13 mm gypsy: Suitable for 12 mm ISO, 13 mm DIN766 chains

The product is CE certified.
