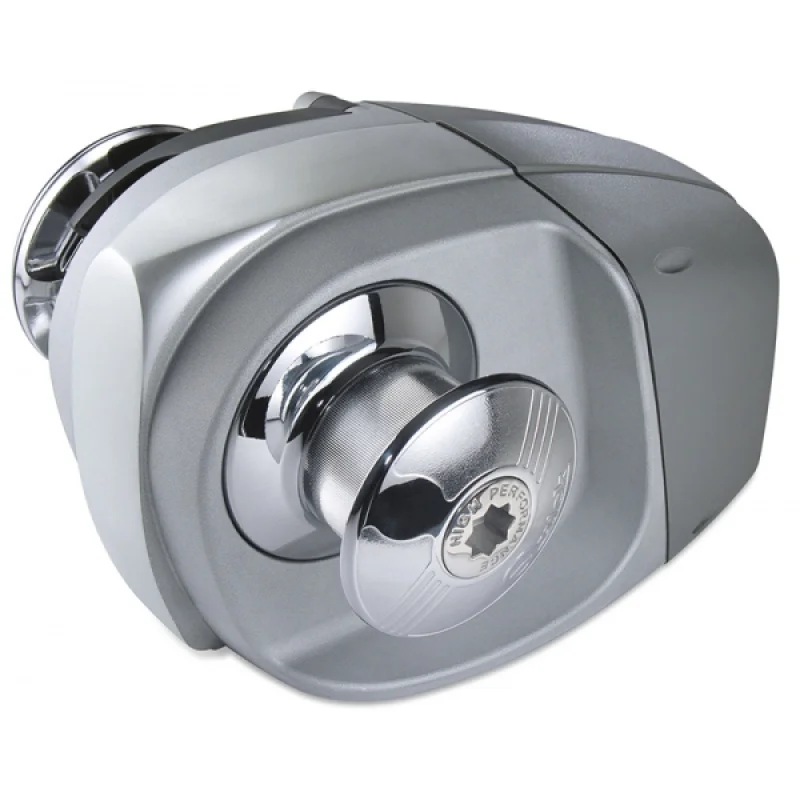

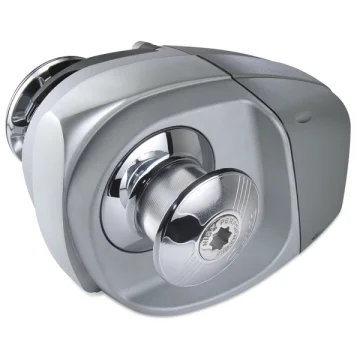

The Quick HECTOR horizontal windlass model is a horizontal windlass that operates with a 1500W motor power and 12V voltage. It is designed for use on boats with a length between 12-15 meters, using an 8 mm chain gypsy.
Its body is made from AISI 316 stainless steel, aluminum, chrome-plated, and composite materials suitable for marine conditions. It is equipped with an IP66 class waterproof motor, an integrated solenoid unit, and a manual release system. The necessary sensor for an optional chain counter connection is standard on the windlass. The solenoid and winch handle are standard equipment. It is CE certified.
- Type: Horizontal windlass, capstan model
- Body: Anodized aluminum / composite
- Motor power: 1500W
- Voltage: 12V
- Gypsy: 8 mm
- Maximum pull: 1500 kg
- Maximum working load: 450 kg
- Working load: 150 kg
- Amperage at working load: 150A
- Winding speed (no load): 37.5 m/min.
- Winding speed (at working load): 17.8 m/min.
- Suitable boat length: 12–15 m
- Chain stripper bar: Yes
- Manual release system: Yes
- Integrated solenoid unit: Yes
- Protection class: IP66 waterproof motor
The 8 mm gypsy is compatible with 8 mm DIN766, 8 mm ISO, 5/16" G4, and 5/16" BBB chains. It also offers the possibility of use with 10 mm DIN766, 10 mm ISO, 3/8" G4 chains for a 10 mm gypsy; and 12 mm ISO and 13 mm DIN766 chains for a 12/13 mm gypsy.
