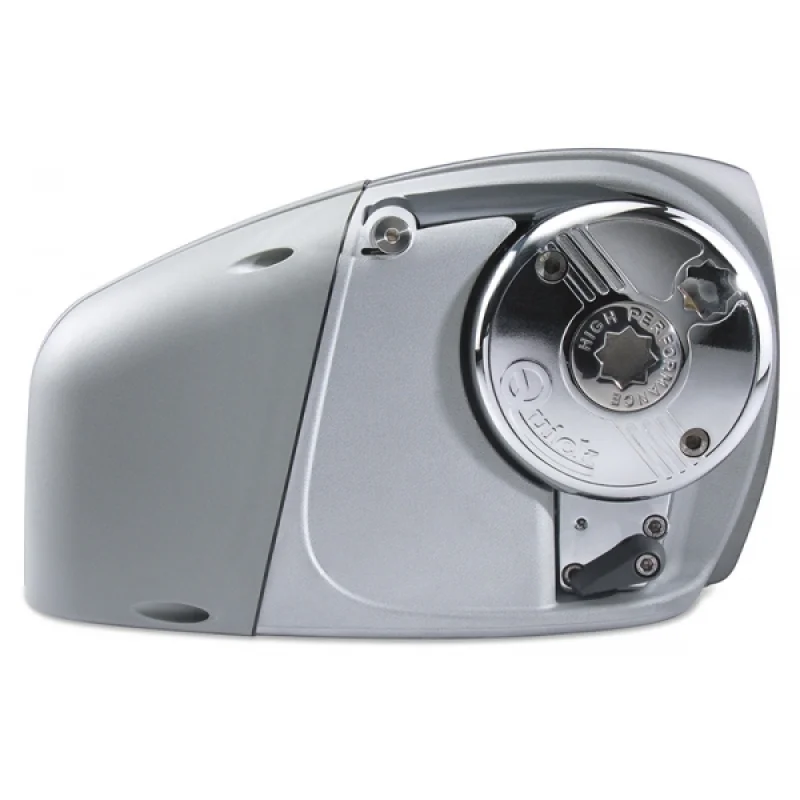

Quick HECTOR is a horizontal, gypsy-type anchor windlass with a 1000W motor power and 12V supply, featuring an 8 mm chain gypsy. It is manufactured from AISI 316 stainless steel, anodized aluminum, chrome plating, and composite materials.

It comes with an IP66 rated waterproof motor, integrated solenoid unit, chain stripper, and manual release system. The sensor for an optional chain counter connection is pre-installed as standard. It is CE certified.

• Product type: Horizontal, gypsy-type anchor windlass
• Brand / Model: Quick HECTOR
• Motor power: 1000W
• Voltage: 12V
• Gypsy: 8 mm
• Body material: AISI 316 stainless steel, anodized aluminum, chrome plating, and composite
• Protection class: IP66 waterproof motor
• Integrated components: Solenoid unit, chain stripper, manual release system
• Chain counter sensor: Sensor for optional chain counter is pre-installed as standard
• Retrieval speed (no load): 37.3 m/min.
• Retrieval speed (under working load): 17.8 m/min.
• Maximum pull: 1300 kg
• Maximum working load: 400 kg
• Working load: 130 kg
• Current at working load: 140 A
• Suitable boat length: 10–13 m
• Gypsy compatibility (8 mm): 8 mm DIN766, 8 mm ISO, 5/16" G4, 5/16" BBB chains
• Other gypsy options: Suitable gypsy options are available for 10 mm DIN766, 10 mm ISO, 3/8" G4; 12 mm ISO, 13 mm DIN766 chains
• Certification: CE certified
