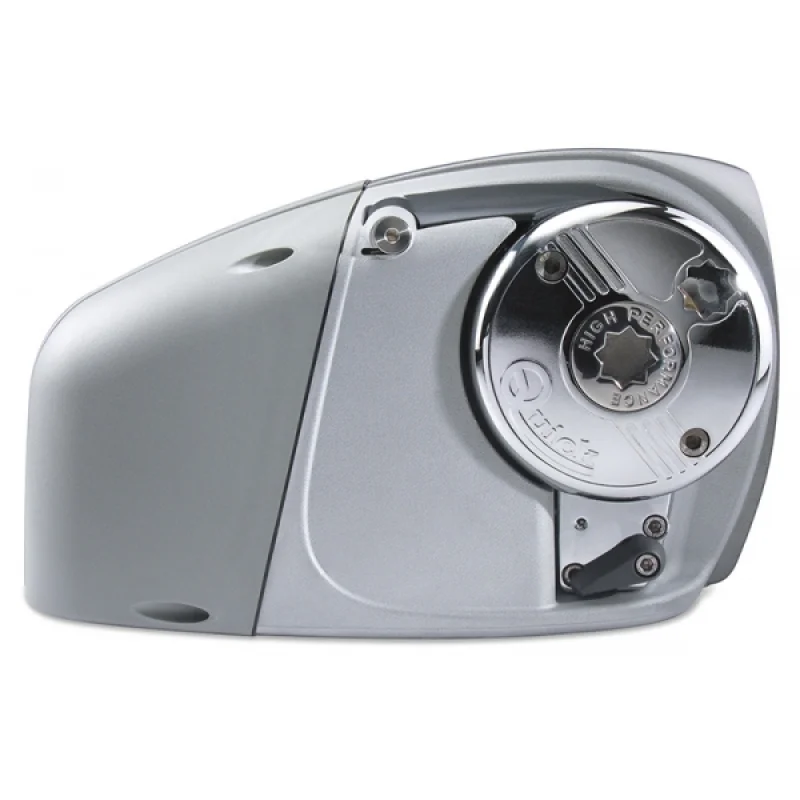

Quick HECTOR is a horizontal, gypsy-type windlass designed for boats between 10-13 meters in length, featuring a 1000W motor power and 12V supply for mooring and anchoring equipment. It operates compatibly with various standard chain types using a 10 mm chain gypsy.

The body structure utilizes AISI 316 stainless steel, aluminum, chrome plating, and composite materials. The necessary sensor for an optional chain counter connection is standard on the windlass. An integrated solenoid unit and a winch handle are among the standard equipment.

• Type: Horizontal windlass, gypsy-type model
• Motor power: 1000W
• Voltage: 12V
• Gypsy: 10 mm
• Maximum pull: 1300 kg
• Maximum working load: 400 kg
• Working load: 130 kg
• Amperage at working load: 140A
• Winding speed (no load): 37.3 m/min
• Winding speed (at working load): 17.8 m/min
• Suitable boat length: 10-13 m

• Anodized aluminum / composite body
• Manual release system
• Chain stripper bar
• Integrated solenoid unit
• IP66 rated waterproof motor
• 8 mm gypsy: Compatible with 8 mm DIN766, 8 mm ISO, 5/16" G4, 5/16" BBB chains
• 10 mm gypsy: Compatible with 10 mm DIN766, 10 mm ISO, 3/8" G4 chains
• 12/13 mm gypsy: Compatible with 12 mm ISO, 13 mm DIN766 chains
